Audio-Technica AT-OC9XSL Dual Moving Coil Cartridge

Save up to 30% with many A.T. MC cartridges in trade !

$729.00

729
Free Lifetime Technical Assistance
SKU: AT-OC9XSL

Description

The AT-OC9XSL Dual Moving Coil cartridge with special line
contact stylus is designed to provide outstanding channel separation. The Pure
Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission
and are aligned in a reverse V-shaped formation to exert less pressure on the
stylus, thereby minimizing distortion. Audio quality is further enhanced by a
rigid aluminum body that reduces resonance, a neodymium magnet and premium
permendur yoke that dramatically increase the magnetic energy, and the nude
special line contact stylus on a boron cantilever that tracks the record groove
with ultimate accuracy, delivering rich, full-range audio and high transient
response. The cartridge body has been pre-threaded, enabling it to be mounted
to a headshell or integral tonearm with just two screws – no nuts required.

  • Dual
    Moving Coil design, featuring independent coils for both left and right
    channels, provides outstanding channel separation
  • The
    coils are aligned in a reverse V-shaped formation, which exerts less
    pressure on the stylus, thereby minimizing distortion
  • The
    cartridge body is pre-threaded, enabling it to be mounted onto the headshell
    or integral tonearm with just two screws – no nuts required
  • Features
    nude Special Line Contact stylus and boron cantilever with accurate
    tracking ability and high transient response
  • A
    neodymium magnet and permendur yoke provide dramatically increased
    magnetic energy
  • Aluminum
    body minimizes unwanted vibration for reduced resonance and superior audio
    reproduction
  • Pure
    Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to
    achieve pure signal transfer

Type

Dual
Moving Coil

Body
Material

Aluminum

Frequency
Response

20-50,000
Hz

Channel
Separation

28 dB
(1 kHz)

Vertical
Tracking Angle

20°

Vertical
Tracking Force

1.8-2.2
g (2.0 g standard)

Recommended
Load Impedance

Min.
100 ohms (when head amplifier is connected)

Coil
Impedance

12 ohms
(1 kHz)

DC
Resistance

12 ohms

Coil
Inductance

25 mH
(1 kHz)

Output

0.4 mV
(at 1 kHz, 5 cm/sec)

Channel
Balance

0.5 dB
(1 kHz)

Stylus
Shape

Special
Line Contact

Stylus
Type

Nude
rectangular shank

Stylus
Curvature Radius

1.5 x
0.28 mil

Cantilever

0.28 mm
diameter nude boron

Static
Compliance

22 x
10-6 cm/dyne

Dynamic
Compliance

18 x
10-6 cm/dyne (100 Hz)

Wire
Used for Coil

PCOCC

Terminal
Pins

Brass

Mount

Half-inch

Weight

7.6 g
(0.3 oz)

Dimensions

17.3 mm
(0.68″) H × 16.8 mm (0.66″) W × 25.7 mm (1.01″) D

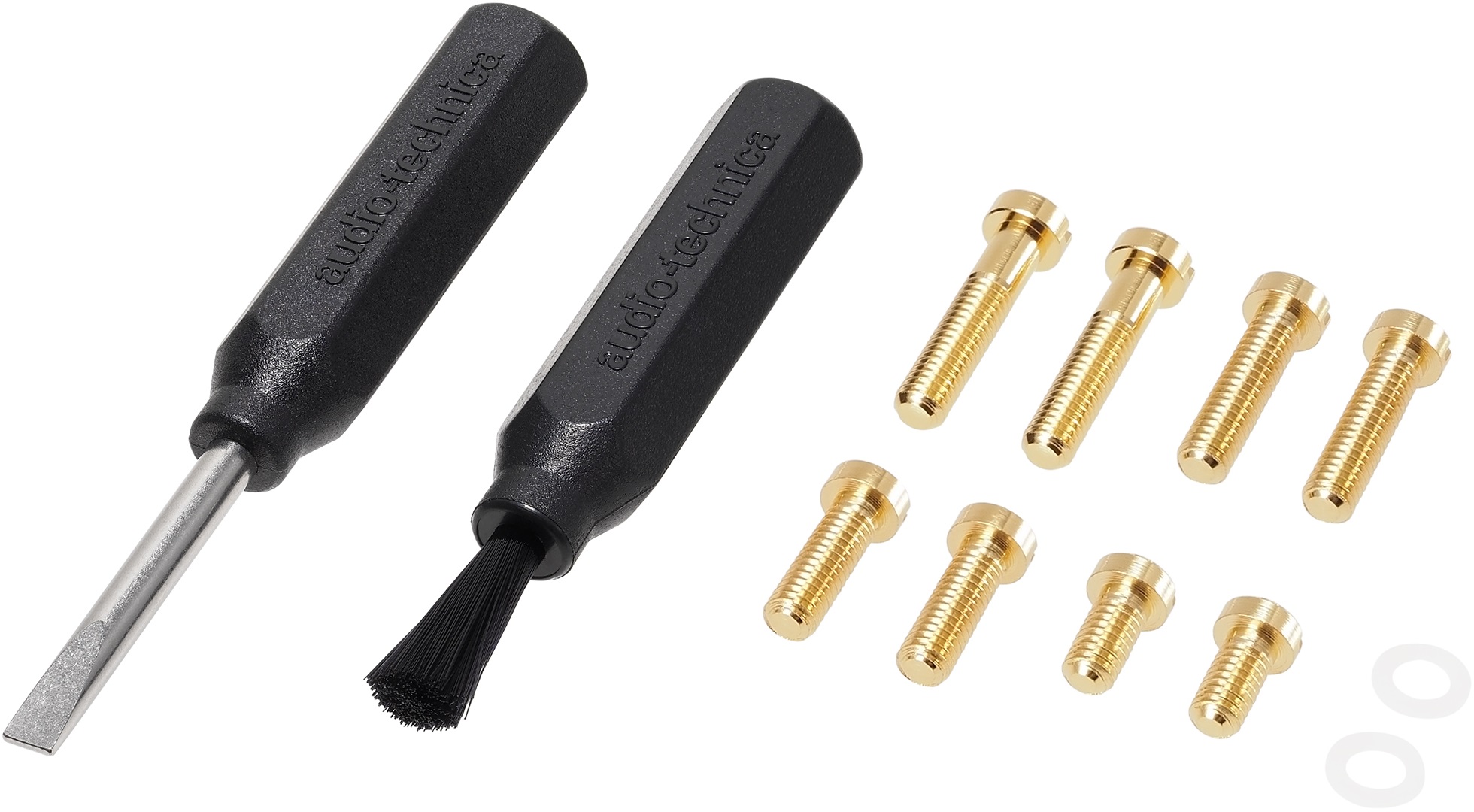

Accessories
Included

Non-magnetic
screwdriver; 2 washers; cartridge installation screws (5 mm × 2, 8 mm × 2, 10
mm x 2, 12 mm x 2); plastic protector; brush

Mounting Feature: Threaded body

Note: moving
coil cartridges require receivers or preamps with compatible inputs; their
stylus assemblies are not field-replaceable.
