Description

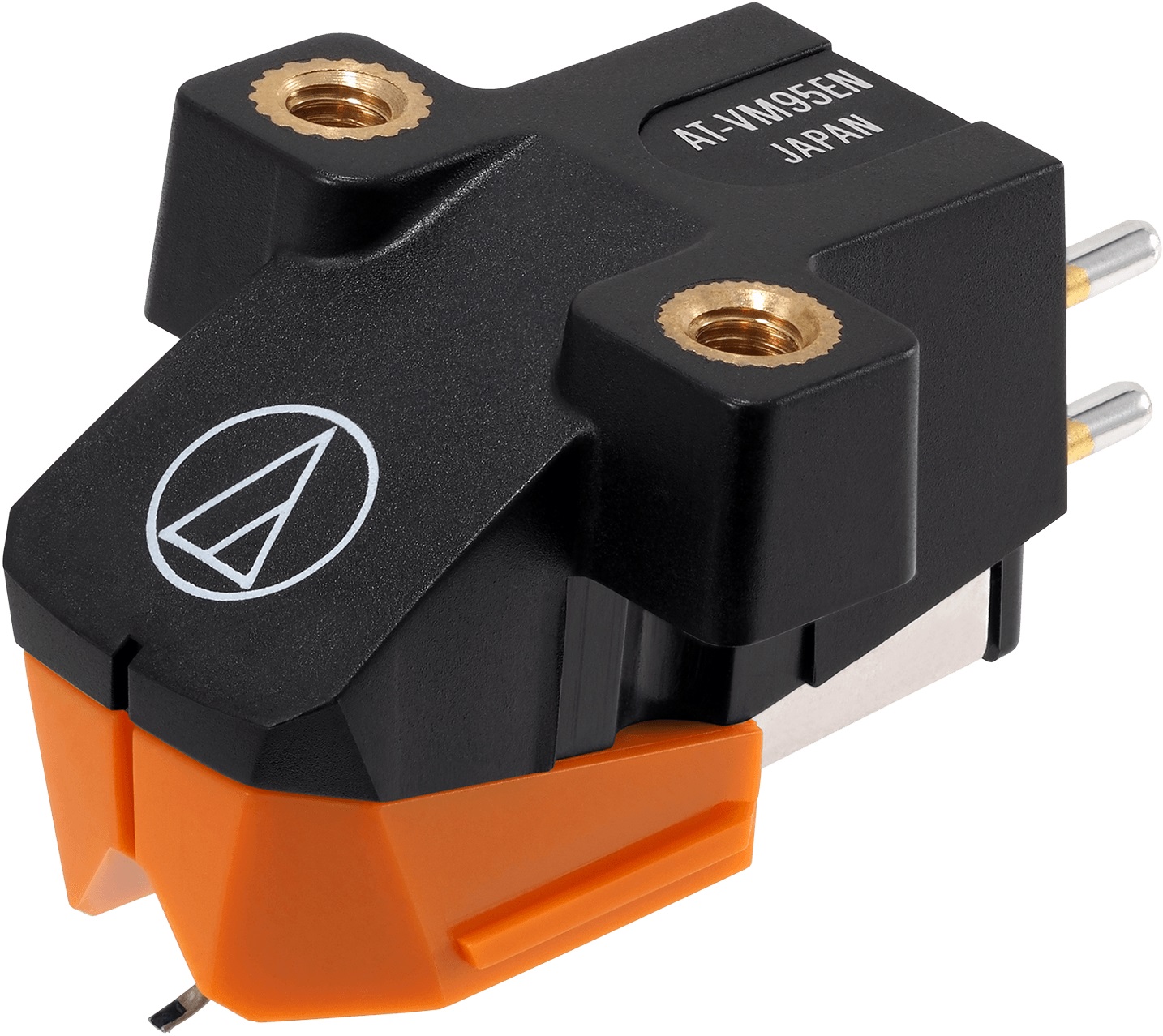

AT-VM95EN
This VM95 Series cartridge with 0.3 x 0.7 mil elliptical
nude stylus fits half-inch mount turntables. The cartridge offers excellent
channel separation and low distortion for outstanding tonal quality. The
durable, low-resonance housing includes threaded inserts that enable the
cartridge to be mounted to the headshell with just two screws – no nuts
required. And since all VM95 Series share the same body, the stylus can be
replaced with any of the six interchangeable AT-VMN95 replacement styli.
Features
- VM95
Series dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus
- Aluminum
cantilever
- Durable
low-resonance polymer housing
- Threaded
inserts in cartridge body enable cartridge to be mounted to headshell with
just two screws – no nuts required
- Compatible
with any AT-VMN95 replacement stylus
Series dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus
cantilever
low-resonance polymer housing
inserts in cartridge body enable cartridge to be mounted to headshell with
just two screws – no nuts required
with any AT-VMN95 replacement stylus
Specifications
Cartridge & Stylus |
|
Frequency Response |
20-23,000 Hz |
Channel Separation |
22 (dB at 1 kHz) |
Vertical Tracking Angle |
23° |
Stylus Construction |
Nude round shank |
Recommended Load Impedance |
47,000 ohms |
Coil Impedance |
3.3 k ohms (1 kHz) |
DC Resistance |
485 ohms |
Coil Inductance |
550 mH (1 kHz) |
Output Voltage |
3.5 mV (1 kHz, 5 cm/sec.) |
Output Channel Balance |
2.0 dB (1 kHz) |
Stylus Shape |
0.3 x 0.7 mil elliptical |
Cantilever |
Aluminum pipe |
Static Compliance |
20 x 10 – 6 cm / dyne |
Dynamic Compliance |
7 x 10 – 6 cm / dyne (100 Hz) |
Mounting |
Half-inch |
Cartridge Weight |
6.1g |
Dimensions |
17.2 mm (0.68″) H × 18.9 mm (0.74″) W × 28.3 mm
|
Accessories Included |
Two 11 mm installation screws, two 8 mm installation
|
Model |
AT-VM95EN |
Mounting Feature |
Half-inch mount |
Recommended Load Capacitance |
100 to 200 pF |
Replacement Stylus |
AT-VMN95EN |
Stylus Size |
0.3 x 0.7 mil |
Type |
VM Stereo Dual Magnet |
Weight |
6.1 g (0.22 oz) |
Wire Used for Coil |
T.P. Copper |
