Description
8300XP

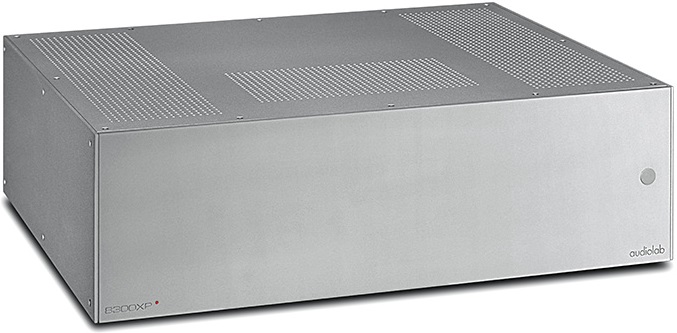

The 8300XP is a classic Audiolab stereo power amplifier,
with a sound as clean and crisp as its minimalist exterior.
Delivering 140W per channel into 8 Ohms, the 8300XP is
capable of driving even the toughest of loudspeakers with sure-footed
authority, combining Audiolab’s class-leading neutrality with an unerring
ability to engage the listener throughout a musical performance.
Exemplary build quality and reliability ensure that this is
a power amp for all seasons, its versatility increased by a choice of balanced
XLR and single-ended RCA inputs, bi-wire speaker terminals and a pair of 12v
trigger inputs. Internal circuit components are of the highest quality, right
down to the power and signal wiring, which is made of ultra-pure OCC (Ohno
Continuous Cast) copper – all in aid of minimising distortion and maximising
sonic clarity.
Flexibility is further enhanced by the ability to add a
second 8300XP and operate in bridged mode, thus increasing the power output to
480W per channel into 8 Ohms. All Audiolab amplifiers are gain-matched,
ensuring perfect integration with other Audiolab components.
Specifications
Rate power output |
140W RMS (8Ω <1% THD, 1kHZ stereo)
|
Gain |
29dB @ 1kHz (stereo)
|
Input sensitivity |
1100mV |
Input impedance |
15k (balanced) 10k (unbalanced) |
Frequency response -3dB
|
20Hz – 80KHz
|
Total harmonic distortion (THD) |
0.004% (20W, ref. 1kHZ) |
Intermodulation distortion (IM) |
0.004% (20W, ref. 7kHz + 60Hz) |
Transient inermodulation distortion (TID) |
113dB (A Weighted, ref. 140W) |
Signal-to-noise ratio (S/N) |
140W / 113dB |
Damping factor |
160 |
Power Requirement |
240V ~ 50-60Hz
|
Dimension (mm) (WxHxD) |
444 x 149 x 367 |
Carton Size (mm) (WxHxD) |
550 x 260 x 580 |
Weight |
16Kg (Net) 18.5Kg (Gross) |
