Description
Digital to Analogue Converter and Headphone Amplifier
DacMagic 200M is a high-performance digital-to-analogue converter that brings your music to life. Unlock richer sound, deeper detail, and greater clarity—whether you’re streaming, spinning CDs, or diving into high-resolution files.
Double-DAC detail
Most DACs handle both channels together. The DacMagic 200M takes a different approach, using dual ESS SABRE reference DACs for improved stereo separation, reduced crosstalk, and stunning musical detail.
Pure hi-fi, however you listen

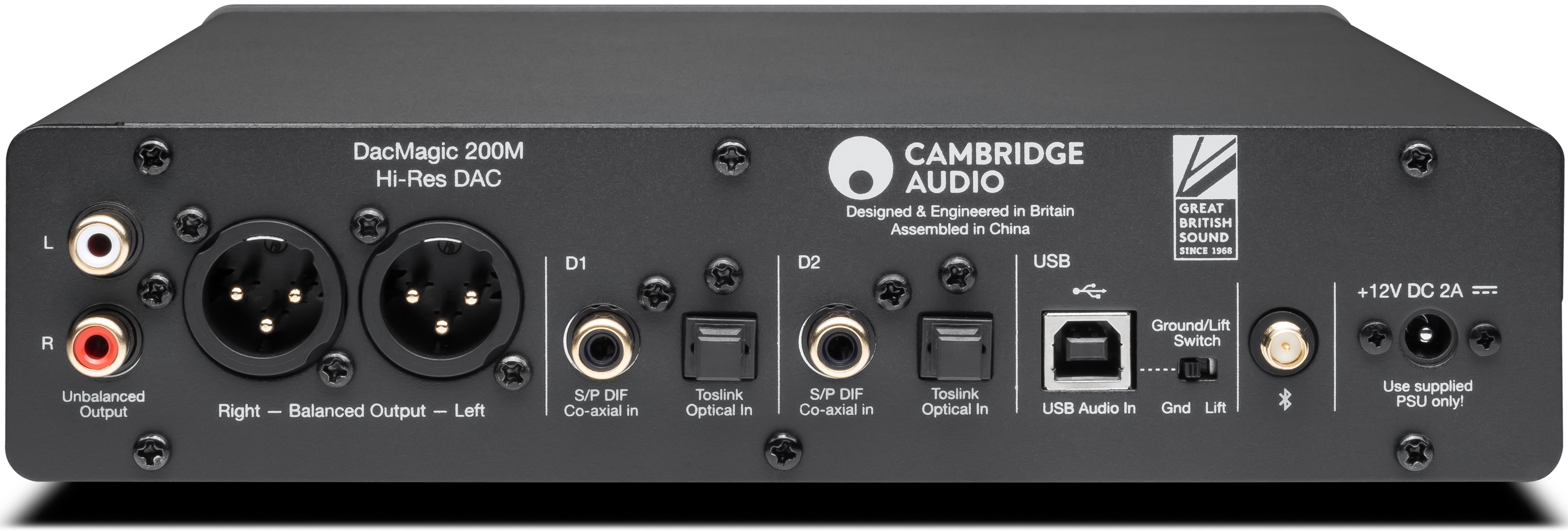

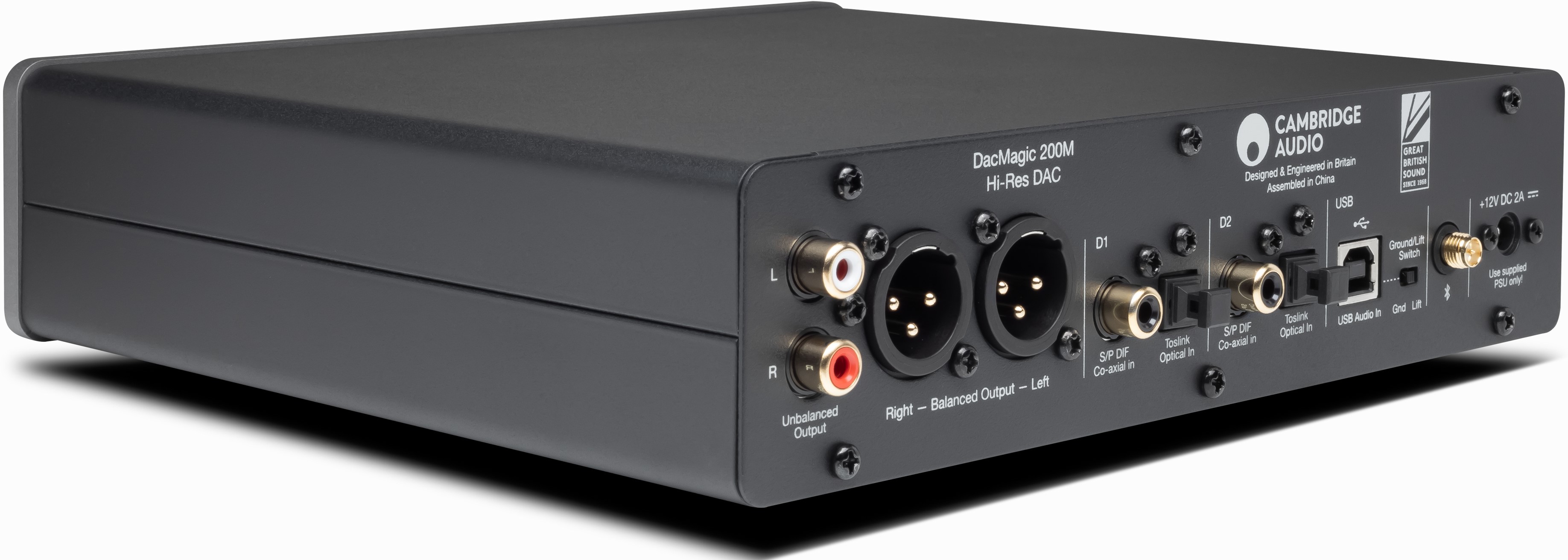

From phones and laptops to CD players, DacMagic 200M fits easily into your setup. With coaxial, optical, USB, and Bluetooth aptX, plus XLR, RCA, and headphone outputs, it’s your gateway to better sound everywhere.
Studio-quality sound
Supporting MQA, 24-bit/768kHz, and DSD512, the DacMagic 200M delivers lossless, high-resolution audio—exactly as the artist intended. Whether wired or wireless via Bluetooth aptX, experience hi-fi sound without limitations.
Digital audio, perfected
With advanced processing and support for high-resolution formats, DacMagic 200M unlocks the full potential of your music. With dual DACs, high-resolution support, and seamless connectivity, it transforms your digital music into an immersive, high-fidelity experience.
Superior conversion, sonic clarity
Dual ESS SABRE DACs
Dedicated left and right channel DACs deliver enhanced stereo separation, reduced distortion, and stunning musical precision.
High-resolution playback
Supports 24-bit/768kHz and DSD512, preserving every detail for true-to-source audio with breathtaking depth and clarity.
Compact and versatile design
A half-width design that fits seamlessly into any desktop or hi-fi stack, available in lunar grey or special edition black.
Balanced XLR and RCA Outputs
For true hi-fi performance, XLR and RCA outputs ensure superior noise rejection and pristine audio integrity.
MQA Support
Plays MQA and MQA Studio-certified tracks, with LED indicators confirming when you’re hearing studio-quality sound.
Dedicated Headphone Output
A high-quality ¼” (6.3mm) headphone jack delivers clean, dynamic sound, perfect for private listening.
Technical specification
Digital to analogue converters
Dual ESS ES9028Q2M DACs
Digital filter
Selectable, Fast – Slow – Short delay
Frequency response
10Hz to 50kHz (±1dB)
Thd+n @ 1khz 0dbfs
<0.0005% (A-Weighted)
Signal to noise ratio
>115dB (A-Weighted)
Crosstalk @ 10khz
< -110dB
Output impedance
<50 Ohms (unbal), <100 Ohm (bal)
Max. output level (unbalanced)
2.1V rms (fixed or variable – user selectable)
Max. output level (balanced)
4.2V rms (fixed or variable – user selectable)
Digital input word widths supported
16bit (Bluetooth), 16-24bit (Optical, Coaxial), 16-24bit (USB)
Digital input sampling frequencies supported
44.1kHz to 96kHz PCM, DoP64 (Optical), 44.1kHz to 192kHz PCM, DoP64 (Coaxial), 44.1kHz to 768kHz PCM, Native DSD 64x to 512x, DoP 64x to 256x (USB)
Mqa compatibility
Full decoding (Core + Renderer)
Bluetooth
v4.2, A2DP profile, SBC and AptX codecs
Roon tested
Yes
Headphone output thd+n
< 0.001% at 1kHz 0dBFS @ 100mW into 32ohm
Headphone output s/n
> 115dB (A-Weighted)
Max output power
>300mW @ 32ohm, >65mW @ 150ohm
Frequency response
10Hz – 50kHz (±1dB)
Recommend headphone impedance
10 Ohm to 600 Ohm
Max power consumption
12W
Colour
Lunar Grey
Dimensions (hxwxd)
52 x 215 x 191mm; (2.0 x 8.6 x 7.6”)
Weight
1.2kg/2.6lbs
