Clearaudio Concept Active Turntable with Internal Phono Preamp & Headphone Amp (Light Wood)

$3,500.00 – $4,300.00

3500
Add to wishlist
Free Lifetime Technical Assistance
SKU: Concept Active Light Wood
Brand: Clearaudio

Description

CONCEPT ACTIVE WOOD WITH SATISFY KARDAN ALUMINUM TONEARM – PLEASE CHOOSE FROM THE PHONO CARTRIDGE OPTIONS

one for all, all for one

Our all-in-one-system, ready to play.

The concept active wood package is available with our innovative Satisfy Kardan Aluminium tonearm. Choose too,
from our specially developed moving magnet (MM) or moving coil (MC) concept
cartridges.

All critical parameters from cartridge tracking weight to
anti-skating are preadjusted in our factory. With the concept active’s
integrated Clearaudio phonostage, move between headphone listening and
listening over amp through your speakers.

The excellent integrated headphone amplifier is suitable for
all premium, dynamic headphones.

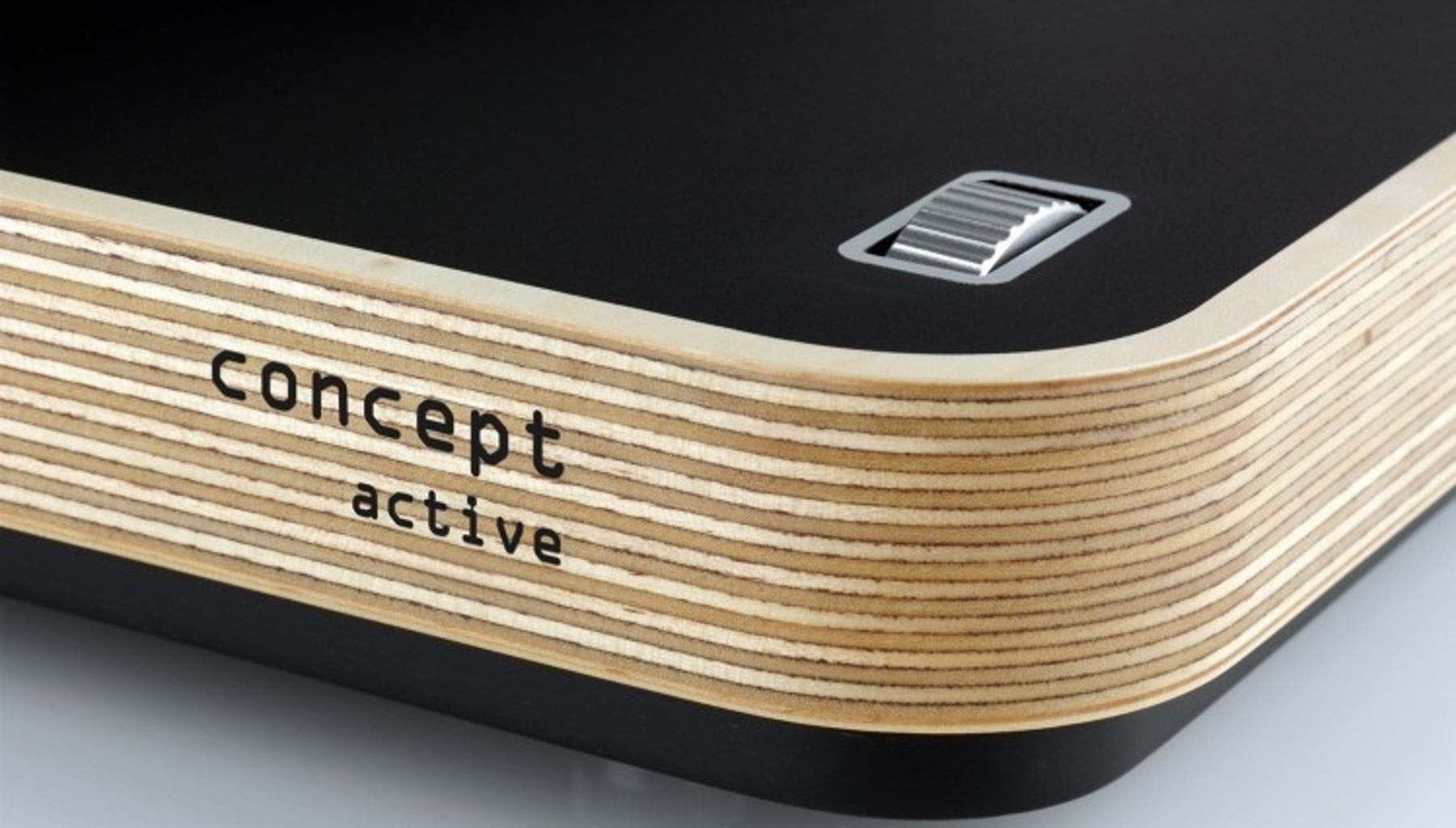

CONSTRUCTION DETAILS

Resonance-optimised
body, highly compressed wood chassis, core of natural medium-density wood
fibre within an aluminium surround and upper layer incorporating a high tech
synthetic compound

SPEED
RANGES

33 ⅓,
45 and 78 rpm

DRIVE
UNIT

Decoupled
and resonance damped DC motor, flat belt-drive and plug-in power supply unit
designed for worldwide use with all networks and power frequencies

BEARING

Polished
and tempered steel shaft in a sintered bronze bushing, runs on a mirror of
Teflon

PLATTER

Synthetic
material, CNC-precision milled surface, 30mm thickness / 1.18 inch. Aluminium
subplatter.

SPEED
ACCURACY (MEASURED)

± 0.05
%

POWER
CONSUMPTION

Max.
consumption: 5.5 Watt
Off mode: 0.0 Watt

OF THE
INTEGRATED PHONOPREAMP BY 1KHZ

+52 dB
(MM mode)
+72 dB (MC mode)

AMPLIFICATION
OF THE INTEGRATED PHONOPREAMP BY 1KHZ

<
0,02 % (MM mode)
< 0,03 % (MC mode)

THD OF
THE INTEGRATED PHONOPREAMP

-74 dB
(MM mode)
-64 dB (MC mode)

S/N OF
THE INTEGRATED PHONOPREAMP

± 0,5
dB

RIAA
ACCURACY OF THE INTEGRATED PHONOPREAMP

47 kOhm

MAX.
OUTPUT VOLTAGE OF THE INTEGRATED PHONOPREAMP

<
10V

TOTAL
WEIGHT

Approx.
7.6kg (incl. tonearm and cartridge)

DIMENSIONS (W/D/H
in mm)

Approx.
420 x 350 x 125 (with tonearm)

WARRANTY

2
years*
* Provided the warranty card is fully completed and returned to Clearaudio
within 2 weeks of purchase.

Additional information

Weight 0.00000000 lbs
Cartridge and Stylus Option

No Cartridge, With .3mV Concept MC Cartridge installed, With Concept MM Cartridge installed
