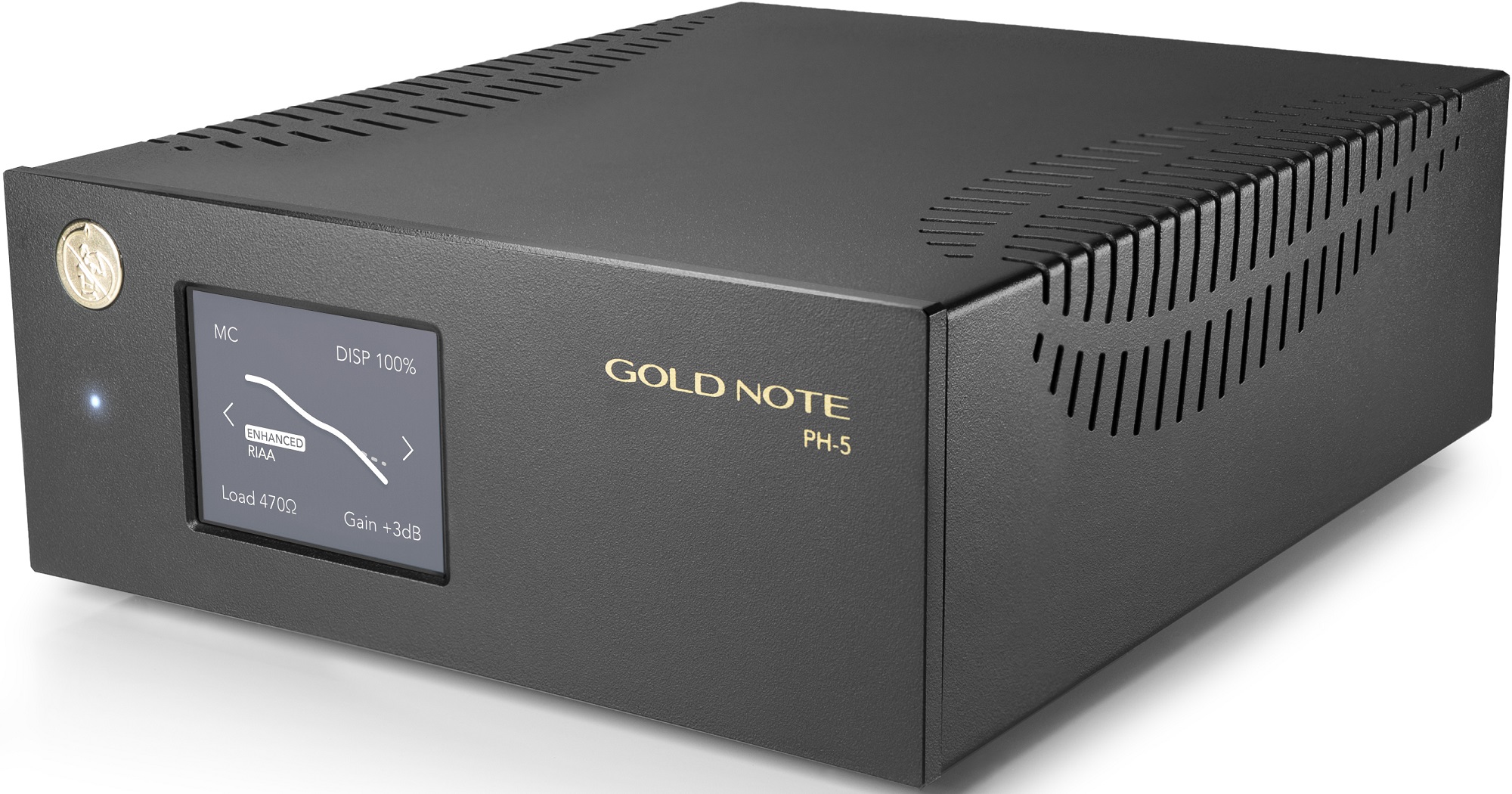

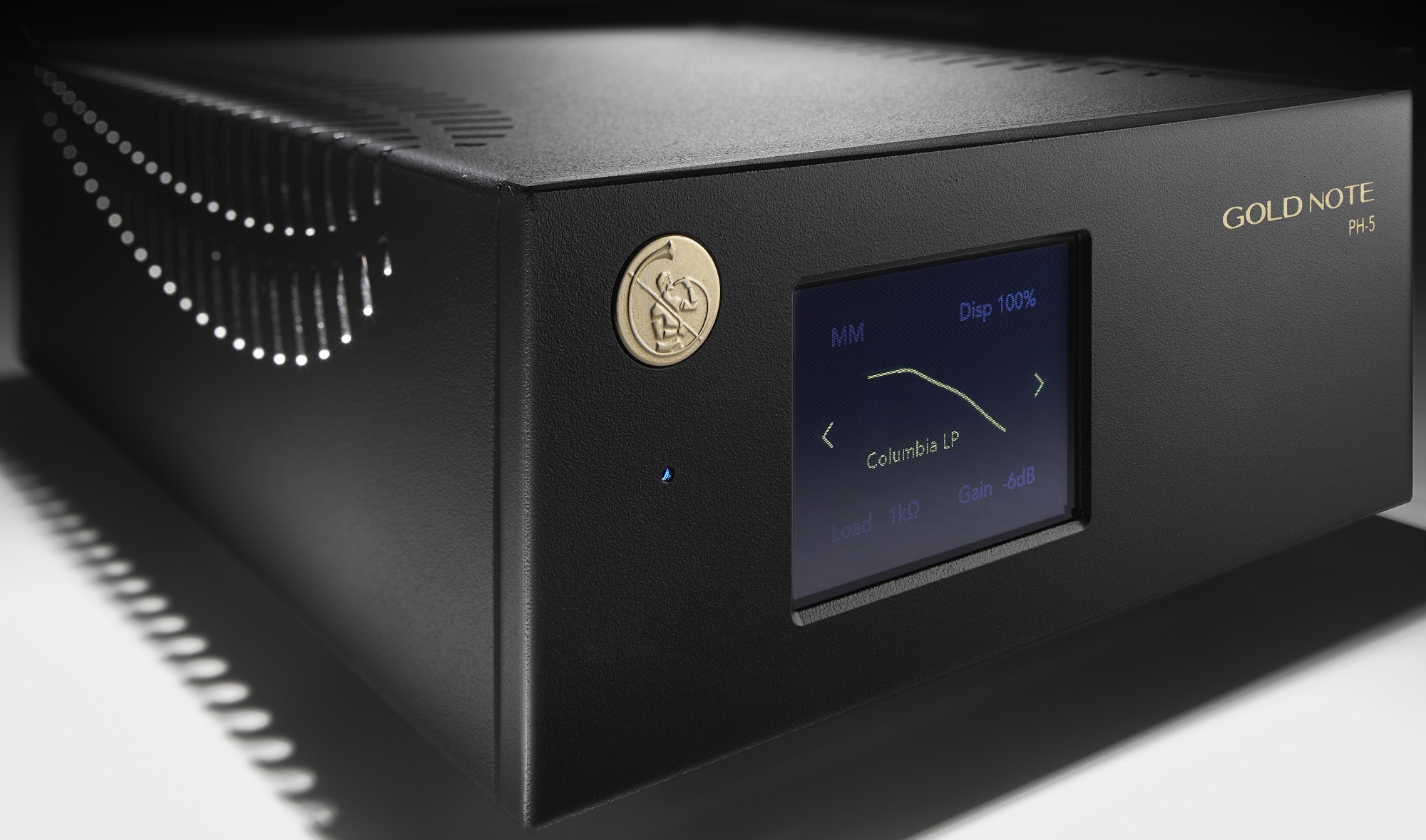

Gold Note PH-5 MM/MC Phono Stage (Black)

Description

PH-5 is a new generation phono stage and has all you
need to have the best vinyl experience ever: 1 stereo RCA input, 6 EQ
curves (RIAA, DECCA-LONDON e AMERICAN COLUMBIA plus enhanced), MM and MC
settings, and a large display that shows all the settings in real-time.

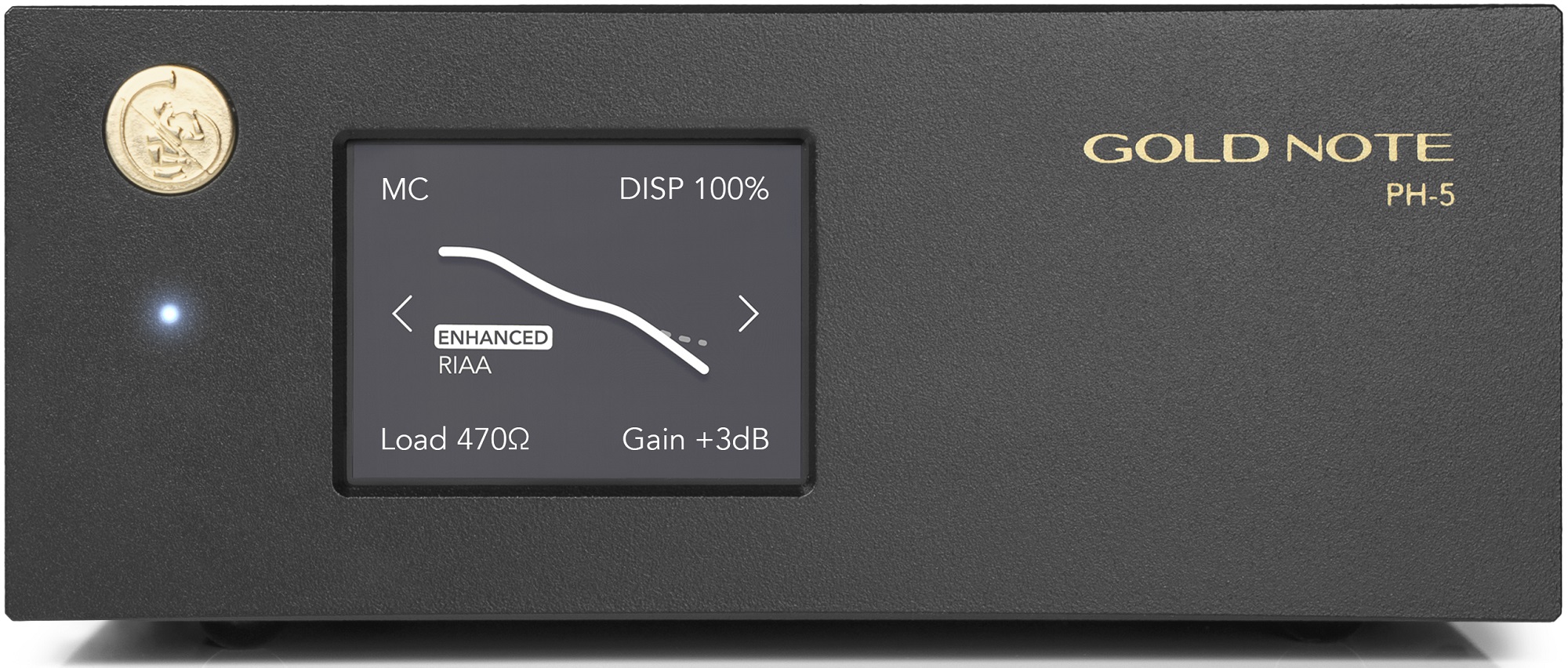

The PH-5 features a TFT color display with
touchscreen interface, a modern solution to change settings
instantly, even while listening to music.

SPECIFICATIONS

EQ CURVES
             3 EQ curves
(RIAA, Decca London, American Columbia) all with Enhanced option

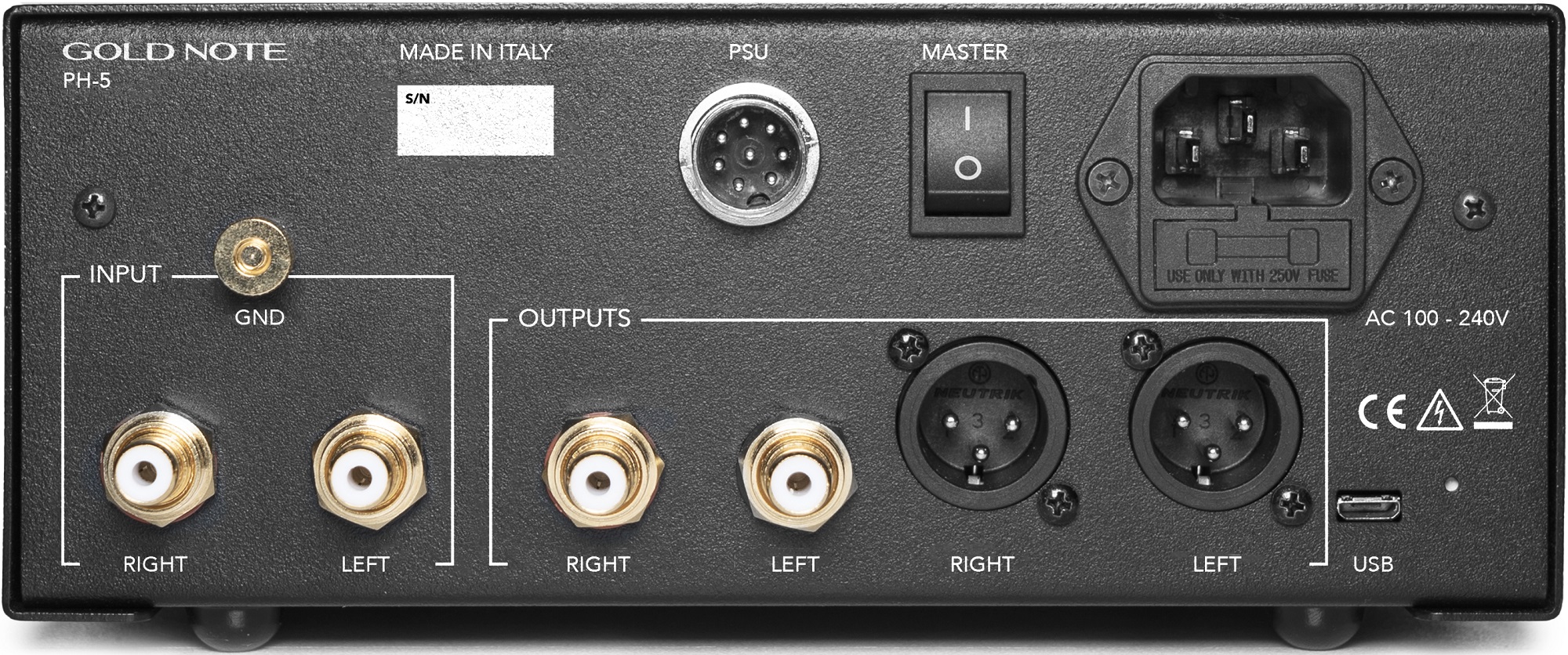

ANALOGUE
INPUTS
1 x stereo RCA (MM/MC)

ANALOGUE OUTPUTS
1 x stereo RCA unbalanced
1 x stereo XLR balanced

OUTPUT IMPEDANCE
50Ω

SUBSONIC FILTER
10Hz/36dB octave

TOTAL HARMONIC DISTORTION
THD
<0.05% @ 1kHz

SIGNAL TO NOISE
RATIO
89dB

DYNAMIC
RESPONSE
105dB

FREQUENCY
RESPONSE
20Hz – 20KHz ± 0.3dB
Enhanced 20Hz – 50KHz  ± 0.3dB

INPUT
SENSITIVITY
 0.1mV MC up to 10.0mV MM

INPUT
IMPEDANCE
9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ,
47KΩ]

INPUT CAPACITANCE
(MM)
220pF

GAIN
40dB MM to 60dB MC with 4 options [0dB, + 3dB, ± 6dB]

POWER
Power Supply 100-120V or 220-240V, 50/60Hz
             Power
consumption: 10W
Standby consumption: < 0,5W
Fuse 2A T

DIMENSIONS AND
WEIGHT
200mm W 80mm H 260mm D
1.2Kg net, 2.2Kg boxed

FINISHES
Black
