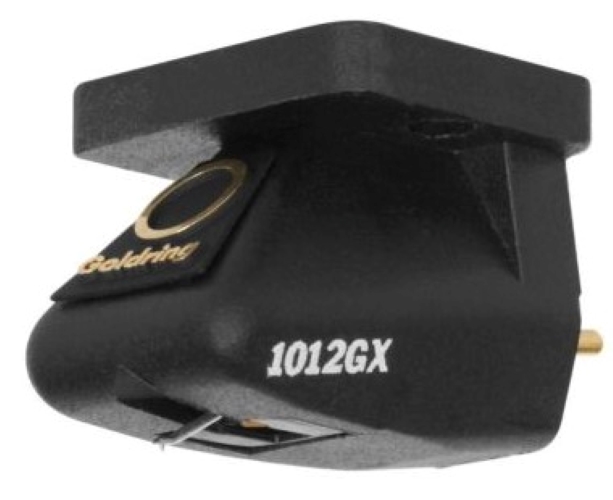

Goldring 1012GX Moving Magnet MM Phono Cartridge

Description

This hand-built cartridge uses the acclaimed Gyger II nude diamond stylus. A fine-line elliptical type with a 6 µm small radius it gives smooth, extended highs, low distortion and reproduces a highly detailed and dynamic sound. Advanced diamond tip polishing ensures excellent tracking ability and reduces record wear. Because it fills the record groove more completely due to its larger major radius, the Gyger II represents a major upgrade over normal elliptical stylus types.

Specs

Frequency Response            20Hz – 20kHz ±3 dB

Channel Balance                   within 2 dB @ 1 kHz

Channel Separation               better than 25 dB @ 1 kHz

Sensitivity                               6.5 mV ±1.5dB, 1kHz @ 5 cm/sec

Static Compliance                  24 mm/N (lat); 16 mm/N (vert)

Equivalent tip mass                0.45 mg

Vertical Tracking Angle           24°

Stylus Radius                         Gyger II

Stylus Type                            Replaceable

Load Resistance                    47 kΩ

Load Capacitance                 150 – 200 pF

Internal Inductance                570 mH

Internal Resistance                660 Ω

Cartridge Mass                      6.3 g

Cartridge Mass (inc. fixings)  7.6 g

Fixing Centre                         0.5″ (12.7 mm)

Playing Weight                       1.5 – 2.0 g (1.7g nom.)

Replacement Stylus               1012GX – D22GX
