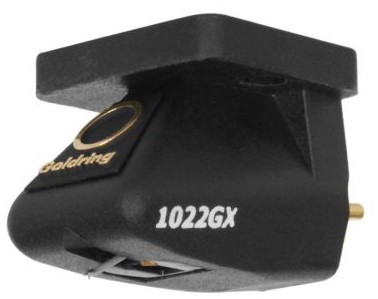

Goldring 1022GX MM Moving-Magnet Phono Cartridge

Description

The 1022GX cartridge is recommended for the discerning listener as it uses a vital-shank, nude, diamond stylus. This polyhedral, line-contact diamond profile was chosen because it has a very low tip-mass and a large contact area whilst being very narrow from front to back, even enabling the undistorted retrieval of ultrasonic frequencies in a recording. A large contact area means that stylus and record wear are reduced and because it plays lower down in the groove than spherical types, older records may well gain a new lease of life.

Specs

Frequency Response            20Hz – 20kHz ±3 dB

Channel Balance                   within 2 dB @ 1 kHz

Channel Separation               better than 25 dB @ 1 kHz

Sensitivity                               6.5 mV ±1.5dB, 1kHz @ 5 cm/sec

Static Compliance                  24 mm/N (lat); 16 mm/N (vert)

Equivalent tip mass                0.45 mg

Vertical Tracking Angle           24°

Stylus Radius                         Vital PH

Stylus Type                            Replaceable

Load Resistance                    47 kΩ

Load Capacitance                 150 – 200 pF

Internal Inductance                570 mH

Internal Resistance                660 Ω

Cartridge Mass                      6.3 g

Cartridge Mass (inc. fixings)  7.6 g

Fixing Centre                         0.5″ (12.7 mm)

Playing Weight                       1.5 – 2.0 g (1.7g nom.)

Replacement Stylus               1022GX – D22GX
