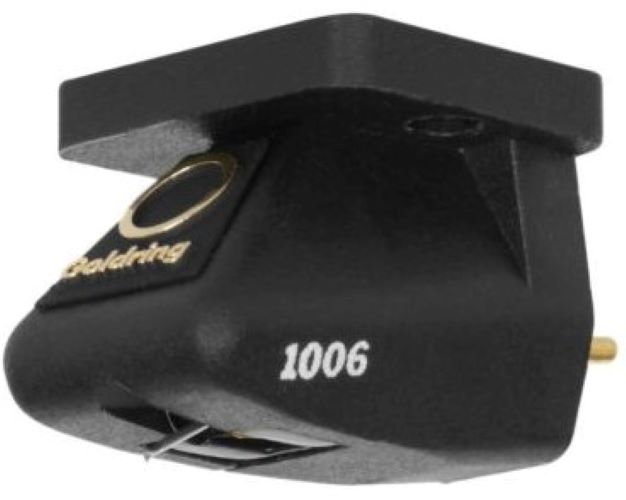

Goldring 1006 MM Moving-Magnet Phono Cartridge

$399.00

399
Free Lifetime Technical Assistance
SKU: 1006
Brand: Goldring

Description

This hand-built cartridge features an elliptical stylus; its shape enables it to more accurately trace the highest frequency record grooves giving it the advantage over ordinary spherical types. The lightweight shank also gives the stylus a lower tip mass than cheaper metal bonded types lending the cartridge an improved transient response.

Specs

Frequency Response            20Hz – 20kHz ±3 dB

Channel Balance                   within 2 dB @ 1 kHz

Channel Separation               better than 25 dB @ 1 kHz

Sensitivity                               6.5 mV ±1.5dB, 1kHz @ 5 cm/sec

Static Compliance                  24 mm/N (lat); 16 mm/N (vert)

Equivalent tip mass                0.45 mg

Vertical Tracking Angle           24°

Stylus Radius                         Elliptical

Stylus Type                            Replaceable

Load Resistance                    47 kΩ

Load Capacitance                 150 – 200 pF

Internal Inductance                570 mH

Internal Resistance                660 Ω

Cartridge Mass                      6.3 g

Cartridge Mass (inc. fixings)  7.6 g

Fixing Centre                         0.5″ (12.7 mm)

Playing Weight                       1.5 – 2.0 g (1.7g nom.)

Replacement Stylus               1006 – D0

Additional information

Weight 0.00000000 lbs
