HiFiMAN EF400 Balanced Desktop DAC/Amplifier

Description

• Massive
  power and superior sound from a sleek and stylish chassis: The EF400 is
  the modern desktop DAC/Amp solution, with a compact footprint and price to
  match, but with sonics that outperform products many times its size.
  Ultra-high efficiency and low power consumption at maximum stability:4.4W
  per channel balance output. Embedded with HIFIMAN HIMALAYA R2R DAC-
  Recipient of 2022 VGP Gold Technology Award (Japan).

• Experience
  the prized performance of the R2R DAC: HIMALAYA is a discrete R2R DAC
  (digital-to-analog) module that is based on the FPGA algorithm. The
  combinations of its low audio frequency range, out-of-band noise, and low
  energy consumption make it a perfect match for high-performance audio
  equipment. The HIMALAYA DAC module supports the standard PCM music signal
  transmitted by the most common IIS (Integrated Interface of Sound) audio
  interface, with a maximum resolution of 24Bit.

• Full
  Balance: The four-channel differential structure features a DAC, buffer
  and active filter that add up to unbeatable fully balanced output for
  stunning performance from a Class AB DAC/amplifier. The four-channel fully
  differential amplifier circuit features a maximum output of 10.7 Vrms
  (THD<1%) on a 36Ω resistor equivalent load. The result: fully balanced
  output that is beyond compare.

• 4-level

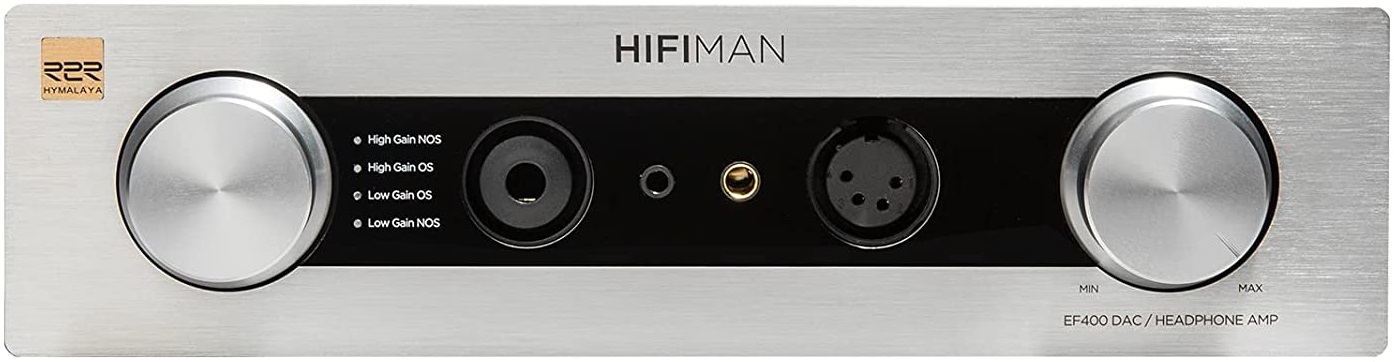

  Function Switch: High Gain NOS, High Gain OS, Low Gain OS, Low Gain NOS ★Headphone
  Out (Front Panel): 6.35mm Single-ended; 3.5mm Single-ended; 4.4mm

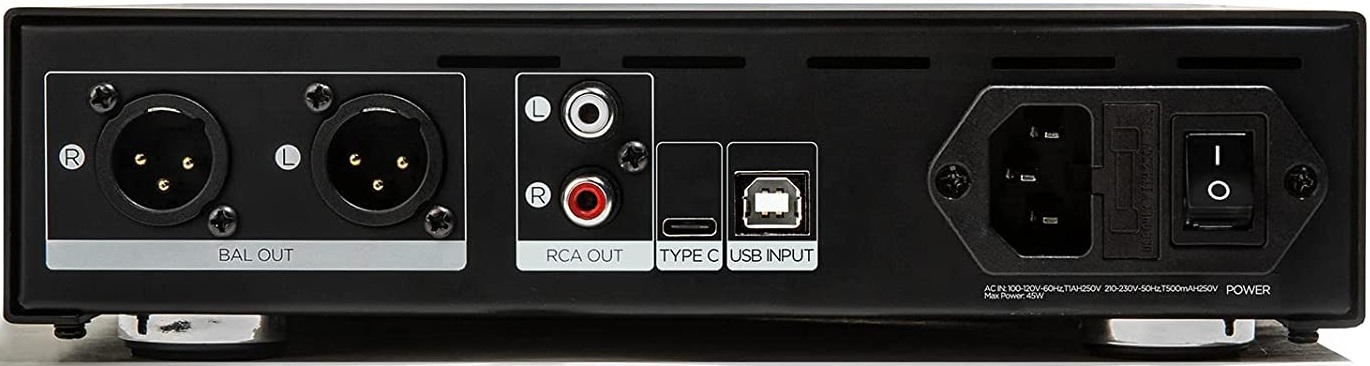

  Balanced; XLR 4-Pin Balanced Output. ★Line Out (Rear Panel):
  CANNON Balanced Output; RCA (Single-ended).★ Input: USB Type C; USB-B

• 110V

THD+N (Line out) : Between 0.002% and 0.004%

Channel Separation : 125+/-3dB

Signal to Noise Ratio : 118+/-3dB (A Weighted)

Maximum Power Output : 4.4 W per channel

Dimensions : 246.5mm(L)×228mm(W)×61mm(H)

Weight : 3.08kg
