Legacy Audio i·V1 ULTRA Flagship Monoblock Amplifier

Description

MASTERS COLLECTION

i·V1 ULTRA

Featuring state of the art ICEedge® technology, the elegant
Legacy i·V1 ULTRA monoblock amplifier approaches 80% efficiency while
delivering 610 watts per channel into 8 ohms, 1,000 watts into 4 ohms. Such
exceptional power is the product of very high current (i) and voltage (V)
output capabilities providing stability into low impedances with a peak output
current capability of 38A.

i·V1 ULTRA Features:

• Short
  circuit protection

• Thermal
  protection

• Triggered
  On/Off

• Standby
  switch

• Front
  panel status indicator



Say goodbye to excessive heat and transformer hum. The
crystal-clear sound is virtually noise-free and reliability is assured- after
all, it’s a Legacy.

The Legacy i·V series is available in a monoblock up to an
eight channel configuration.

“Does That Extra Power Make A Difference? In My
Listening It Certainly Did.” – Al Griffin, Sound & Vision

ICEedge® Technology

These long life amplifiers employ ICEedge® technology to
sound as clean and uncolored as the best of the best while running much cooler.
This balanced differential design operates against a background of silence
while delivering incredible current and voltage outputs on demand.

Increased Resolution

Take advantage of the increased dynamic capability of
today’s high resolution recordings with the Legacy i·V amplifier series. You
will enjoy a lower noise floor in your recordings, stronger crests and
increased dynamic resolution.

Higher amplifier power assures the proper snap in transients and means dense
musical arrangements will avoid the smearing, strain and inevitable distortion
as complex passages reach higher levels.

• Power
  Rating:1,000 watts per channel @ 4 ohms, 610 watts per channel @ 8 ohms

• Peak
  Power:1.2 kW peak power @ 4 Ohm/ 1kHz with less than 1% distortion

• Over
  Current Protection:Breaker reset for excessive sustained current

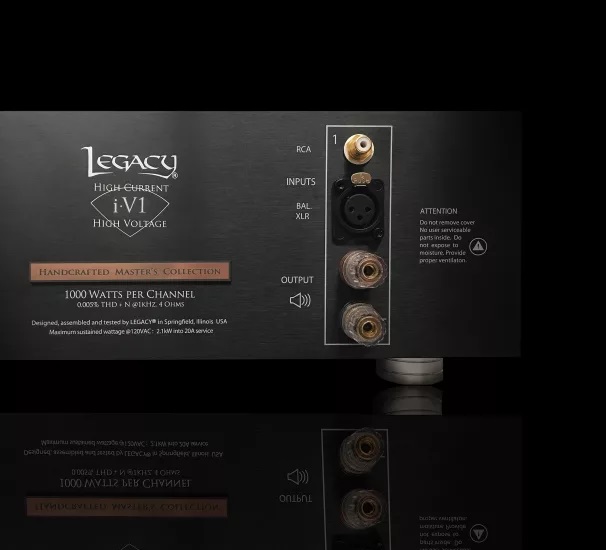

• Inputs:Fully
  balanced XLR, single-end RCA

• Outputs:Gold
  plated safety approved five-way binding posts

• Damping
  factor:750 average, 20Hz to 1kHz

• Voltage
  Gain:25.8 dB

• Dynamic
  Range:127 dB, A-weighted

• Voltage/Current:98
  Vp/ 38Ap

• Input
  Sensitivity:5.0 Vp @ 1200W/4 Ohm

• Input
  Impedance:38 kOhm for both pin 2+ and pin 3-

• Channel
  Separation:120 dB at 1kHz

• Unit
  Dimensions:17.5″ W x 15.6″ D x 5.8″ H

• Unit Shipping Weight:31 lbs each
