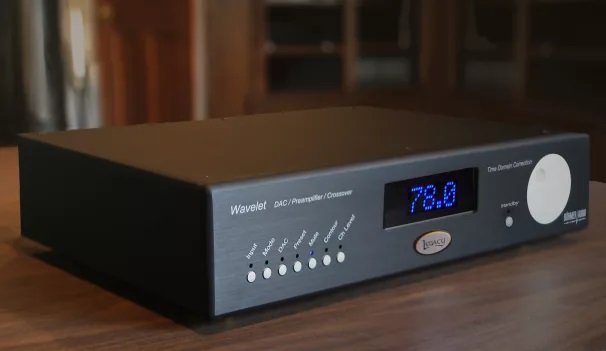

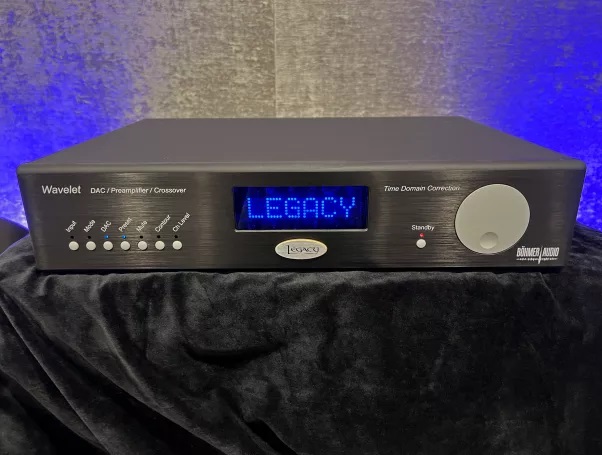

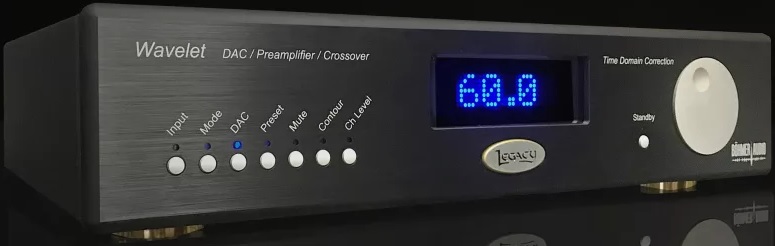

Legacy Audio Wavelet 2 DAC / Preamp / Processor

$7,950.00

7950
Free Lifetime Technical Assistance
SKU: Wavelet 2

Description

MASTERS COLLECTION

Wavelet 2 DAC / Preamp / Processor

The Legacy Audio Wavelet 2 is a control preamp, a high-end
DAC, a 2/3/4-way digital crossover with time alignment and a speaker correction
system that will literally “learn” your room.

In an ideal world you would hear the music exactly as it was
intended to be heard. But rooms are not perfect and resonances play havoc below
500Hz. The Wavelet processor will analyze your room and make the calculations
to reduce resonant energy as late as 40msecs. The improvement in tonal balance
and pitch definition is not subtle.

Already have a favorite DAC with a volume control? How about
a big vinyl collection? Analog lovers can take advantage of balanced XLR or
unbalanced RCA inputs without concern of digital artifacts. An apodizing
circuit corrects for the the pre-ringing native to CODECs. Wavelet 2 has
adequate headroom to handle these higher level signals while functioning as a
crossover and compensating for room resonances. Wavelet processes at 64
bits of depth in a domain more than one trillion times finer in resolution than
that of a standard CD.

The Wavelet 2 is by design upgradable. The unit can download
firmware updates directly when you choose.

Setup is simple, and the Wavelet 2 is easily controlled with
the included App that runs in your iPad/iPhone/Android or other smart device.
Wavelet comes with a precision calibrated microphone and a Wi-Fi adapter that
allows you to work wirelessly with the Wavelet.

Wavelet 2 easily integrates in any system.

Analog Inputs

Two pairs of Stereo balanced inputs on XLR connectors. Input
sensitivity without attenuation 0 dBFS*1 = 1 dBV*2, input impedance 20 kOhm.

Two pairs of Stereo unbalanced inputs on RCA connectors.

Input sensitivity without attenuation 0 dBFS*1 = 1 dBV*2

Input impedance 100 kOhm.

Analog attenuation available in three steps of -3 dB, -6 dB
and -12 dB for an input sensitivity of respectively 0 dBFS = 4 dBV, 7 dBV or
12dBV.

One XLR Measurement microphone input, 48 Vdc Phantom power.

Digital

Asynchronous USB audio, 32 bit, 44.1 – 384 kHz

AES/EBU & SPDIF, 24 bit, 192kHz

TosLink, 24 bit 96kHz

Processing

DSP: Analog Devices, internal processing sample rate 192kHz,
bit depth 64 bits

Outputs Analog

8 balanced output channels on 8 XLR connectors. 0 dBFS*1 = 8
dBV*2 , 33 Ohm output impedance.

An analog output level increase of 6 dB is available through
internal jumpers offering 0 dBFS = 14 dBV

8 unbalanced output channels on 8 RCA connectors. 0 dBFS*1 =
8 dBV*2, 33 Ohm output impedance.

Communication

REST control API over Ethernet, Control4 driver available,
Trigger input and output, 12 Vdc on, 0Vdc off, WiFi

Physical Dimensions 445 mm W x 301 mm D x 95 mm H / 17.52” W
x 11.85” D x 3.74 H Weight 6.1 kg / 13.5 lbs

The Legacy Wavelet 2 assures that all frequencies arrive
with perfect timing and decay naturally, without lingering.

  • Analog
    Inputs:Two pair Stereo balanced XLR inputs

  • Two pair Stereo unbalanced RCA inputs

  • One Measurement microphone XLR input
  • Digital
    Inputs:USB audio, 32 bit, 44.1 – 384 kHz

  • AES/EBU & SPDIF, 24 bit, 192kHz

  • TosLink, 24 bit 96kHz
  • Analog
    Outputs:8 balanced output channels on 8 XLR connectors. 0 dBFS*1 = 8 dBV*2
    , 33 Ohm output impedance

  • 8 unbalanced output channels on 8 RCA connectors. 0 dBFS*1 = 8 dBV*2, 33
    Ohm output impedance.
  • Analog
    Input Adjustments:Balanced input sensitivity without attenuation 0 dBFS*1
    = 1 dBV*2, input impedance 20 kOhm

  • Unbalanced input sensitivity without attenuation 0 dBFS*1 = 1 dBV*2, input
    impedance 100 kOhm

  • Analog attenuation available in three steps of -3 dB, -6 dB and -12 dB for
    an input sensitivity of 0 dBFS = 4 dBV, 7 dBV or 12dBV respectively
  • Processor:Analog
    Devices, Internal processing sample rate 192kHz, bit depth 64 bits
  • Measurement
    Microphone:Included
  • Control
    Interface:Legacy Wavelet app, included. Running on iOS, Android, iPad, Mac
    or PC device.
  • Control
    Connections:Wi-Fi or Ethernet CAT5/CAT6 connection
  • Dimensions
    (HxWxD, inches):4.125 x 17.5 x 12
  • Weight:13.5 lbs
