Lyngdorf D-5 Compact In-Wall Speaker (EACH)

Description

D-5

Specifications

Model: Lyngdorf D-5
Description: 2 way speaker
Tweeter: 25 mm / 1” soft dome
Midrange driver: 180 mm, 35 mm voice coil, aluminum cone, vented
magnet
Enclosure: Closed MDF cabinet
Frequency range: 80 – 20,000 Hz (-3 dB)
Nominal Impedance: 4 Ohm
Sensitivity: 89 dB (2.83V/1m)
Power handling: 100 W (IEC)
Maximum SPL: 106 dB
Crossover point: 2,2 kHz
Connections: Binding posts
Mounting: In-wall
Dimensions with grill (W x H x D): 362 x 362 x 109 mm / 14.25 x
14.25 x 4.3 inches
Cut-out dimensions (W x H x D): 334 x 334 x 104 mm / 13.2 x 13.2 x
4.1 inches
Weight: 6,4 kg / 14.1 lb
Finish: Matte black, white grill

The first Lyngdorf Audio installation speakers

The D-500 and D-5 models bring Lyngdorf Audio sound quality
to the custom installation speaker market. After the successful introduction of
Lyngdorf loudspeakers for modern living rooms, ranging from the MH and FR
on-wall speakers and BW boundary woofers to the CS-1 cabinet speaker, the
Lyngdorf Discreet series expands the company’s range with in-wall and
in-ceiling speakers for stereo and multichannel installations.

D stands for discreet

D stands for discreet – all models are designed as
installation speakers for discreet in-wall or in-ceiling integration, featuring
a wall-fixing mechanism with mounting legs. All models also come with their own
loudspeaker enclosure, making system planning and the actual installation as
easy as possible, with no after-market backbox or closed wall cavity required.
This also ensures that the sound performance is always defined and consistent,
depending less on the wall construction and the available space behind the
wall.

Unique features

Adjustable tweeter for immersive audio

The D-5 IC model features an angled, adjustable tweeter.
Together with the square cabinet design, this construction allows the sound to
beam towards the listening area, for example when used as height speakers for
immersive audio, mounted above in front, at the sides, or behind the listeners.
The tweeter radiation can further be fine-tuned after the installation.

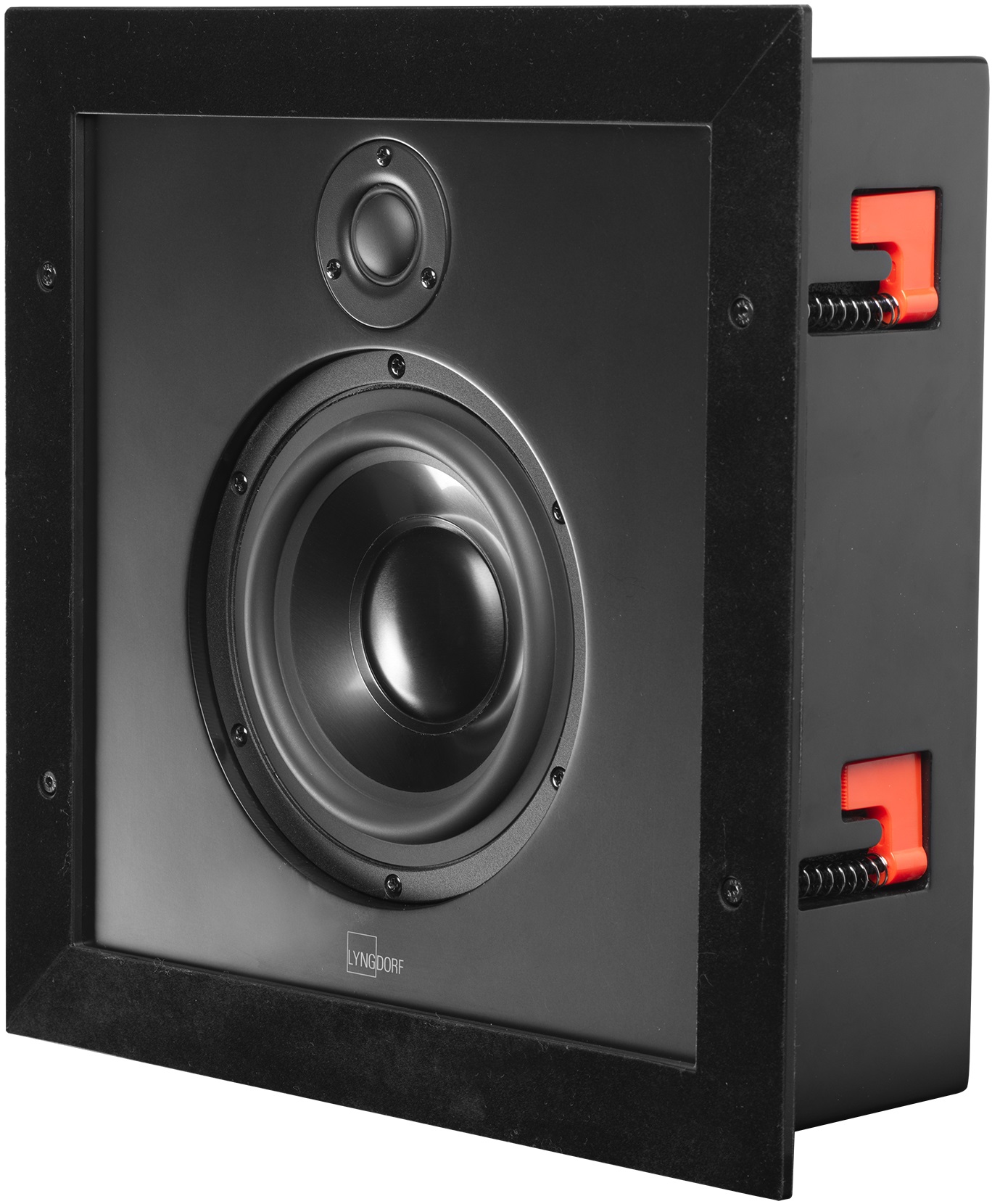

Pre-mounted loudspeaker enclosure

Both D-5 and D-5 IC models come with their own pre-mounted
loudspeaker enclosure, so that no after-market backbox or closed wall cavity is
required. This ensures that the sound performance is always defined and
consistent, depending less on the wall construction and the available space
behind the wall.

Lyngdorf Audio speaker design and drive-units

The D-500 and D-5 woofers, midrange drivers and
tweeters are designed by Lyngdorf Audio and feature soft-dome tweeters, light
aluminum cones, and powerful vented magnets..
