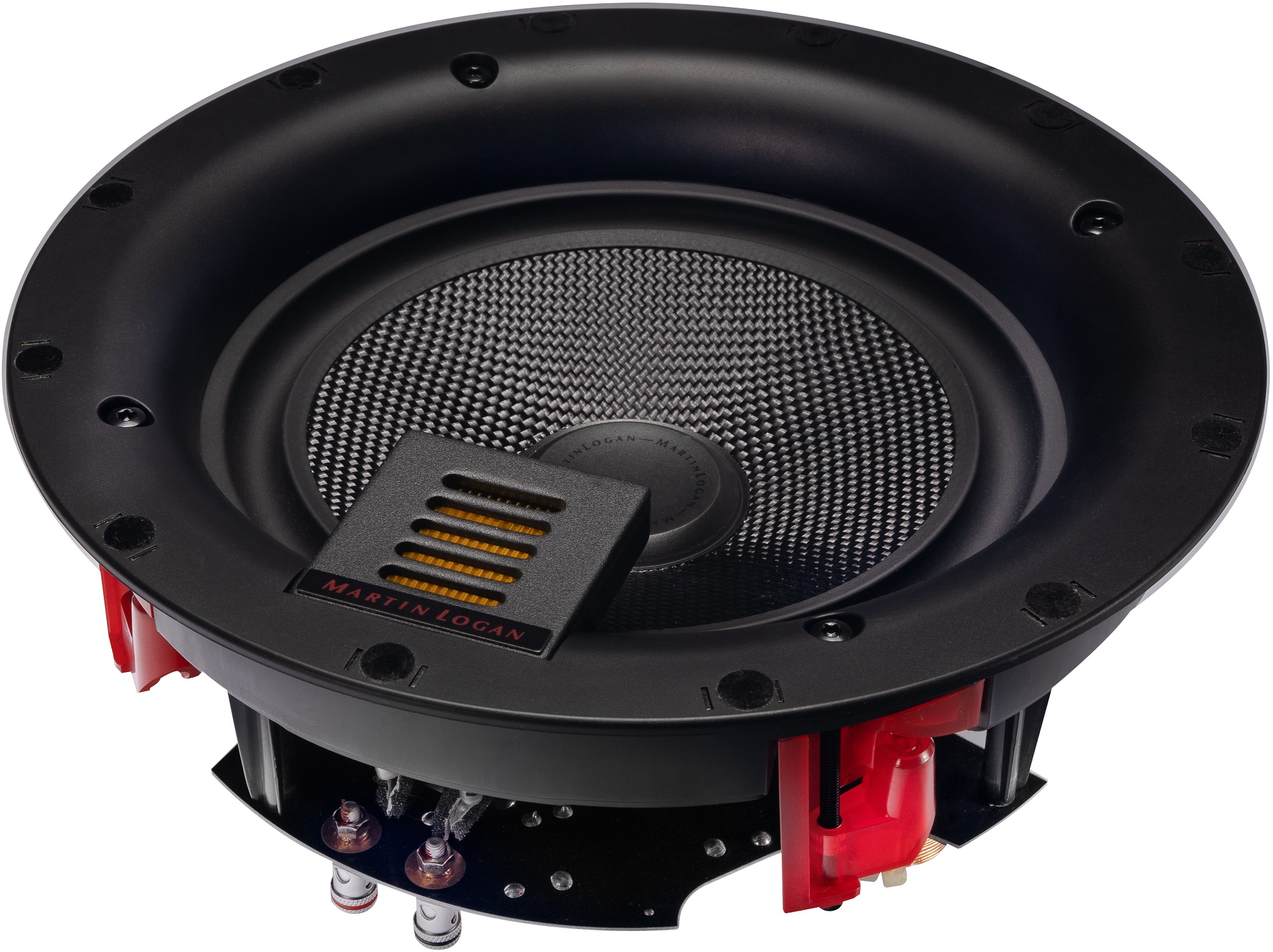

MartinLogan Motion MC8 CI Series 8″ In-Ceiling Speaker (EACH)

Description

If you desire even more output and bass response than the
MC6, the 8” MC8 is the obvious choice. Featuring the same Folded Motion Tweeter
and woven fiberglass woofer as the rest of the Motion CI models, the MC8 is all
about “more.” MC8 can handle more power, produce more output, and deliver more
bass when the fullest performance is desired. An optional retrofittable back
enclosure is available for applications where sound control is needed.

All MartinLogan Motion CI Series speakers feature our
signature Folded Motion Tweeter or FMT. This innovative piece of audio
technology provides incredible detail, precise clarity, clean output and high
efficiency in a small but mighty package. Pairing this tweeter with lightweight
woven fiberglass woofers means that Motion CI delivers a clean and balanced
sound that is perfectly suited for any application. Whether you listen to
music, movies or a little bit of everything, Motion CI gives you a true high-end
audio experience at an affordable price. To round out the assortment,
pre-construction brackets are available for all models, and all in-ceiling
models have square grilles and retrofittable back enclosures available
separately.

The Sound of Invisibility:

Folded Motion^® Tweeters

MartinLogan’s signature Folded Motion Tweeter utilizes an
extremely low-mass diaphragm that “squeezes” air, thus requiring
significantly less excursion than the typical 1-inch dome tweeter. Its folded
design allows for a much larger surface area (compared to that of a regular
1-inch dome tweeter), controlled dispersion characteristics, and vanishingly
low distortion. It’s a miracle of audio engineering that delivers much of the
high-frequency detail, speed and response of a large, dynamic electrostatic
panel in a small space.

This thin-film transducer design packs all the accuracy and
delicacy of an electrostatic panel into a small space. Folding the dramatically
lightweight film into an accordion-like structure increases the surface area,
giving Folded Motion tweeters eight to ten times greater surface area than
typical tweeters. This ideal combination of light and large produces superior
accuracy, extended frequency bandwidth and higher output capability; all with a
faster, more efficient transient response, and virtually zero distortion. In
these characteristics, the Folded Motion Tweeter design can mimic the
performance of a large electrostatic panel in the confines of a more
traditional loudspeaker enclosure.

Woven Fiberglass Cones

All Motion CI speakers feature lightweight woven fiberglass
cones specifically engineered for their application to blend seamlessly with
the lightning speed of our signature Folded Motion Tweeter. No matter which
Motion CI speaker you choose for your room, rest assured they are designed to
provide a consistently high level of performance and can easily be used with
other MartinLogan speakers to make creating the perfect system for your unique
listening space that much easier.

The MartinLogan Sound

MartinLogan Motion CI speakers sound great in any room.
Regardless of the environment, our speakers just sound better, more articulate,
more detailed, and more realistic. With Controlled Dispersion and one of the
most responsive tweeters in the industry, our in-wall and in-ceiling models can
compete with and often exceed the performance of traditional cabinet
speakers.MartinLogan Motion CI speakers sound great in any room. Regardless of
the environment, our speakers just sound better, more articulate, more detailed,
and more realistic. With Controlled Dispersion and one of the most responsive
tweeters in the industry, our in-wall and in-ceiling models can compete with
and often exceed the performance of traditional cabinet speakers.

Want to learn more about controlled dispersion

Spring-Loaded Binding Posts

With easy pre-installation access, our spring-loaded binding
posts feature a large 4.5mm wire access hole and connect via banana plug, pin,
or 12AWG bare wire.

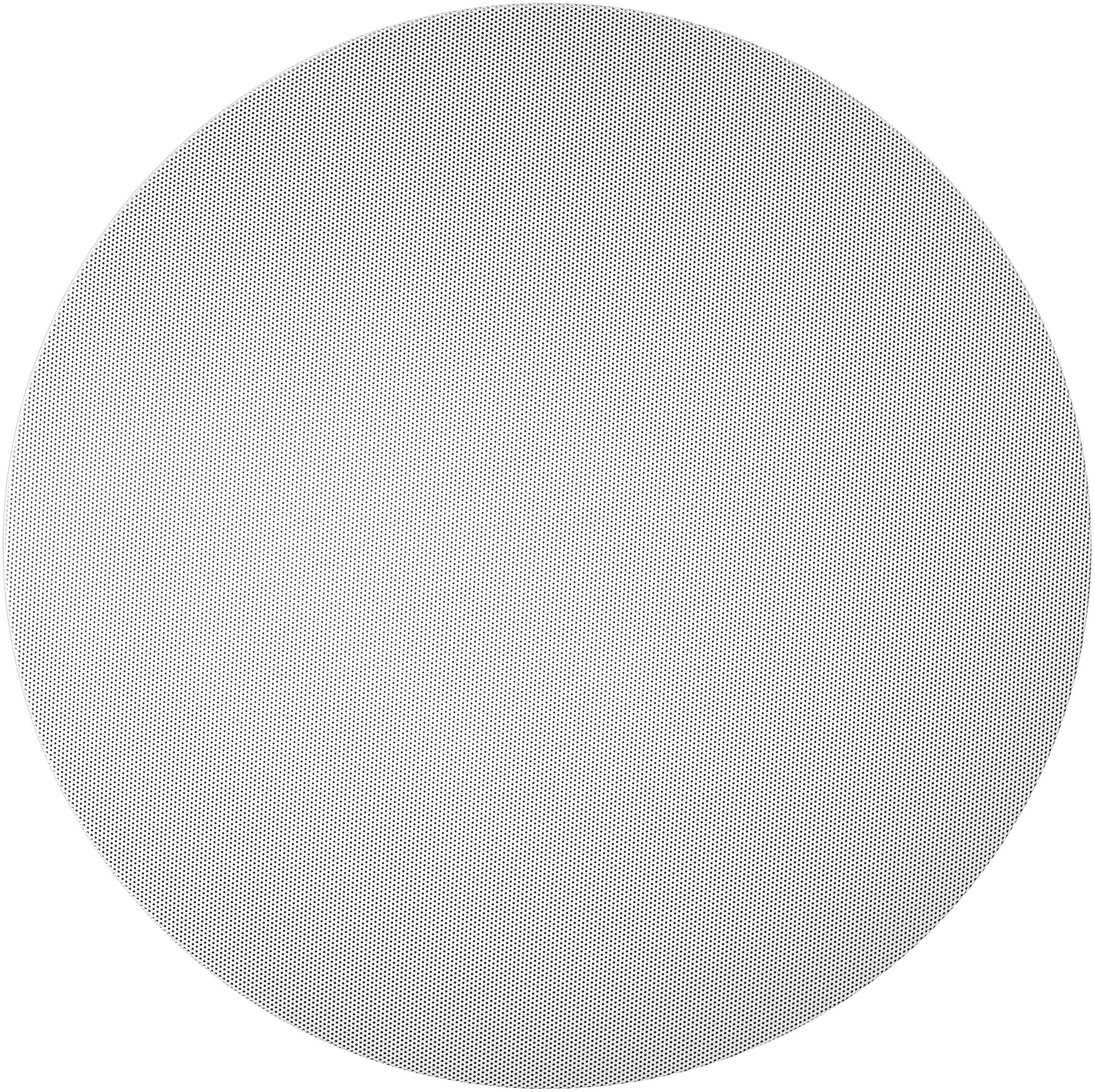

Micro-Perforated Grilles

MC8 features an ultra-low profile, paintable,
micro-perforated grilles with no visible bezel for a near-invisible integration
into any wall or ceiling. A series of powerful magnets hidden inside the
speaker quickly secure grilles into place, reducing the risk of warping or
damage during installation. Optional square grilles are available for the MC8.

Proprietary Vojtko^™ Crossover Networks

Vojtko Crossovers are named after MartinLogan’s chief audio
technologist,
Joe Vojtko.

His unique approach to crossover design is just as crucial
to MartinLogan’s Truth in Sound as are our innovative electrostatic and Folded
Motion thin-film driver technologies. A Vojtko Crossover isn’t just a set of
design requirements; it’s a philosophy.

Vojtko Crossovers are hand-built from the highest quality
components and avoid overly complex topologies. This crossover has a
straightforward objective: breathtaking realism.

Hand-Selected Components

In designing each crossover topology, we take the drivers
themselves into consideration. Carefully selected drivers, engineered for
specific performance characteristics, are kept within their optimal frequency
range by the custom Vojtko Crossover.

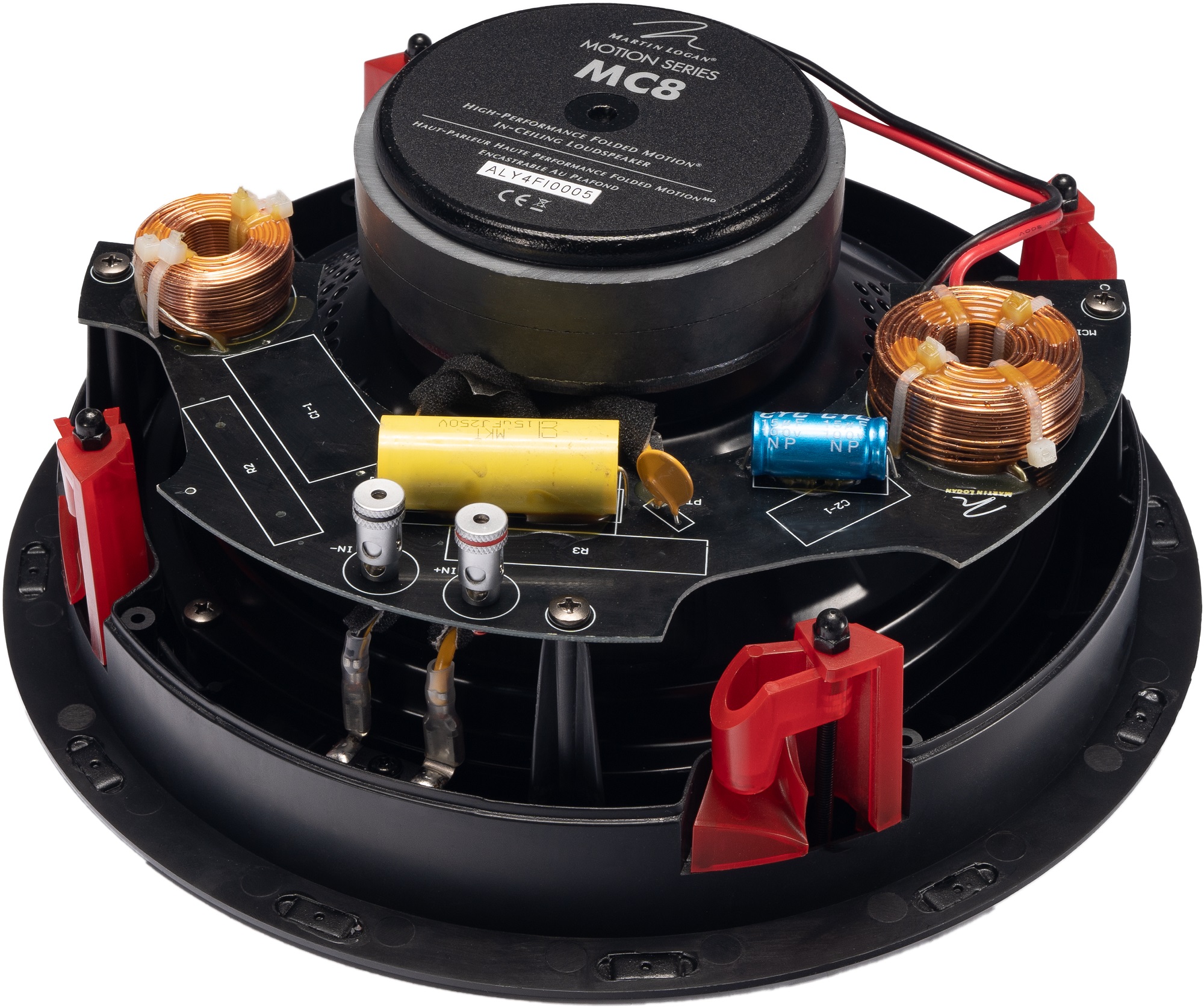

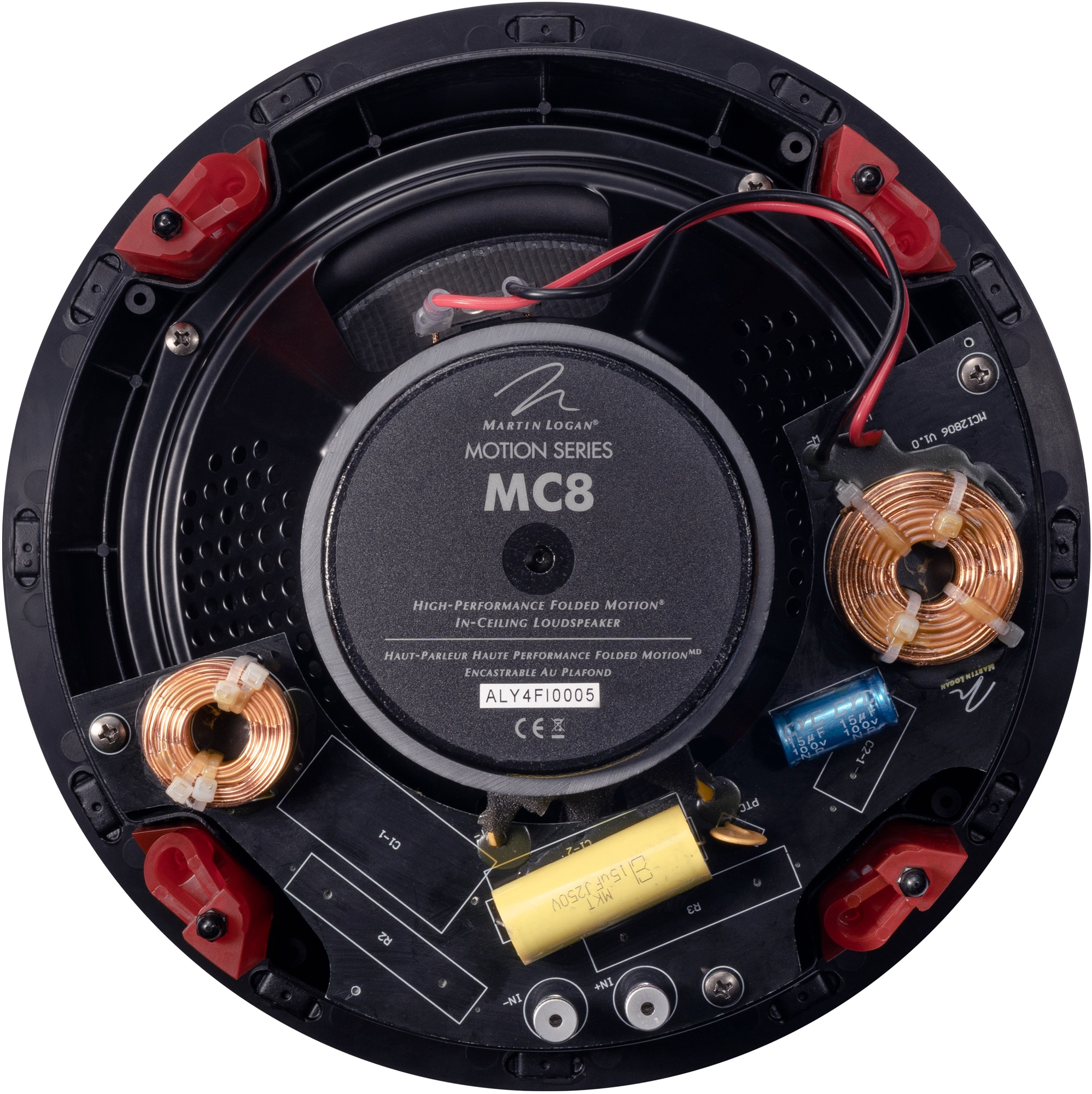

Each crossover is handcrafted using exceptional
polypropylene and polyester capacitors, custom wound and large steel laminate
low-DCR inductors, and double thick PCBs. This precision-tuned network
preserves even the most microscopic sonic nuances while handling the full
dynamics of any source. It’s a recipe for vanishingly low distortion and
seamless driver integration.

The most critical aspect of a Vojtko Crossover design is the
final voicing, always conducted in a real-world environment. This uniquely
pragmatic approach guarantees that even the most amazing MartinLogan
loudspeakers deliver Truth in Sound in any room, including yours.

Optional Retrofit Enclosure

All Motion CI in-ceiling speakers have the option for a
retrofittable back can or enclosure. This helps contain the sound coming off
the back of the speaker to dramatically reduce unwanted sound that can travel
through the floor and up into the living space above the speaker. For those
desiring increased bass output, or for when sound control is not required, you
can simply choose to use the MC8 without the optional enclosure so it can take
full advantage of the larger air volume provided by the space in the ceiling.

Specifications

Specifications are subject to change without notice

Frequency Response	44 – 25,000 Hz ±3dB
Aiming	N/A
Sensitivity	91dB @2.83V/ 1 meter
Impedance	Compatible with 8 ohms
High Frequency Driver	FMT Transducer 1” x 1.4” (2.6cm x 3.6cm) Opening 5.25” x 1.75” (13.3cm x 4.4cm) Diaphragm
Crossover Frequency	2,220 Hz
Low Frequency Driver	8” (20.32cm) black fiberglass cone
Suitable Amplifier Range	50–200 Watts
Max Power Handling	100 Watts
Binding Post Inputs	Push style accommodates wire up to 12AWG
Weight	6 lbs. each (2.72 kg)
Dimensions (overall size)	10.35” x 4.95” (26.28cm x 12.57cm)
Projection From Wall Surface	0.33” (0.83cm)
Required Wall Opening (includes tolerance)	9.25” (23.5cm) diameter
Depth Behind Wall Surface	4.81” (12.22cm)
