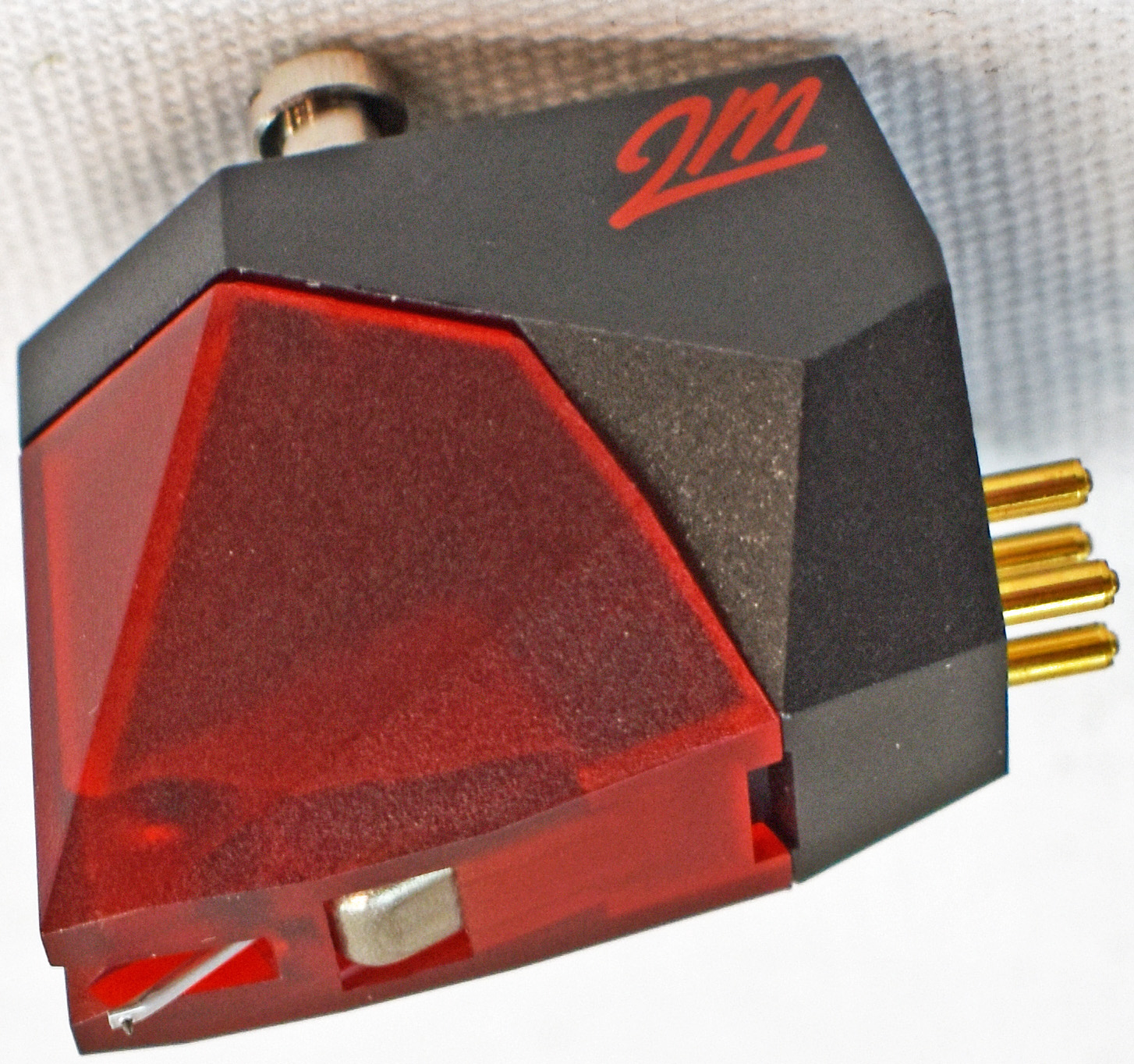

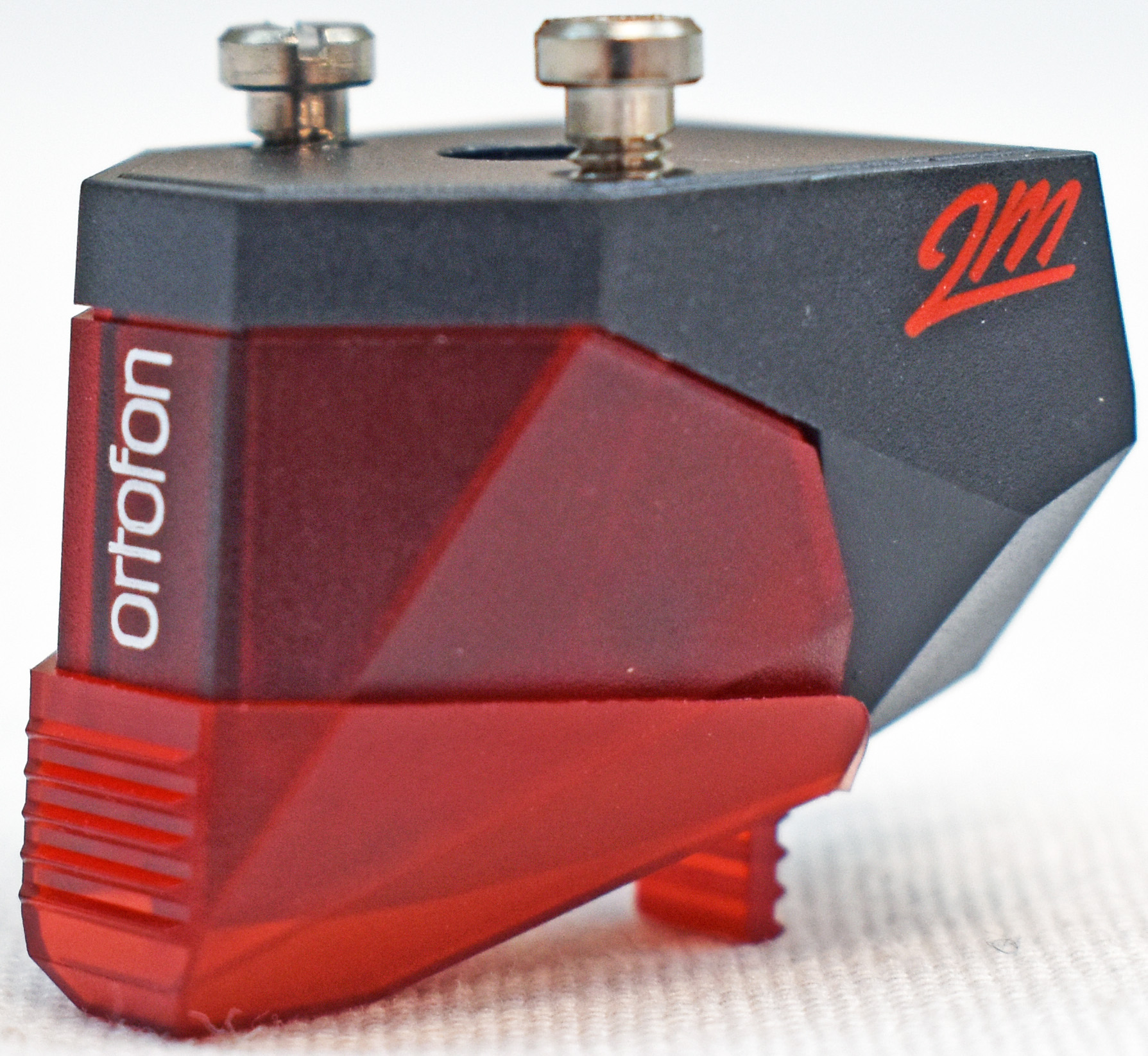

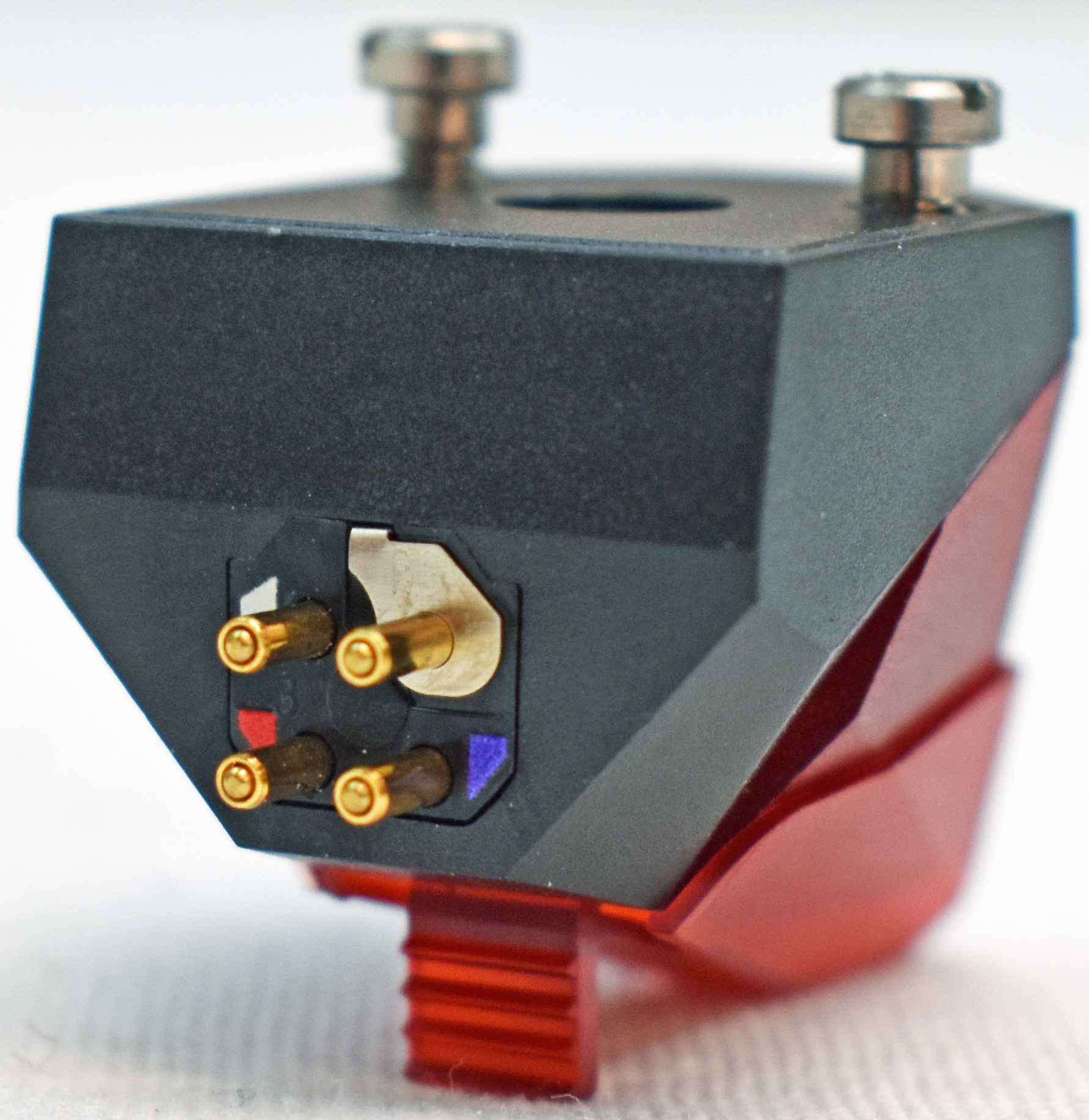

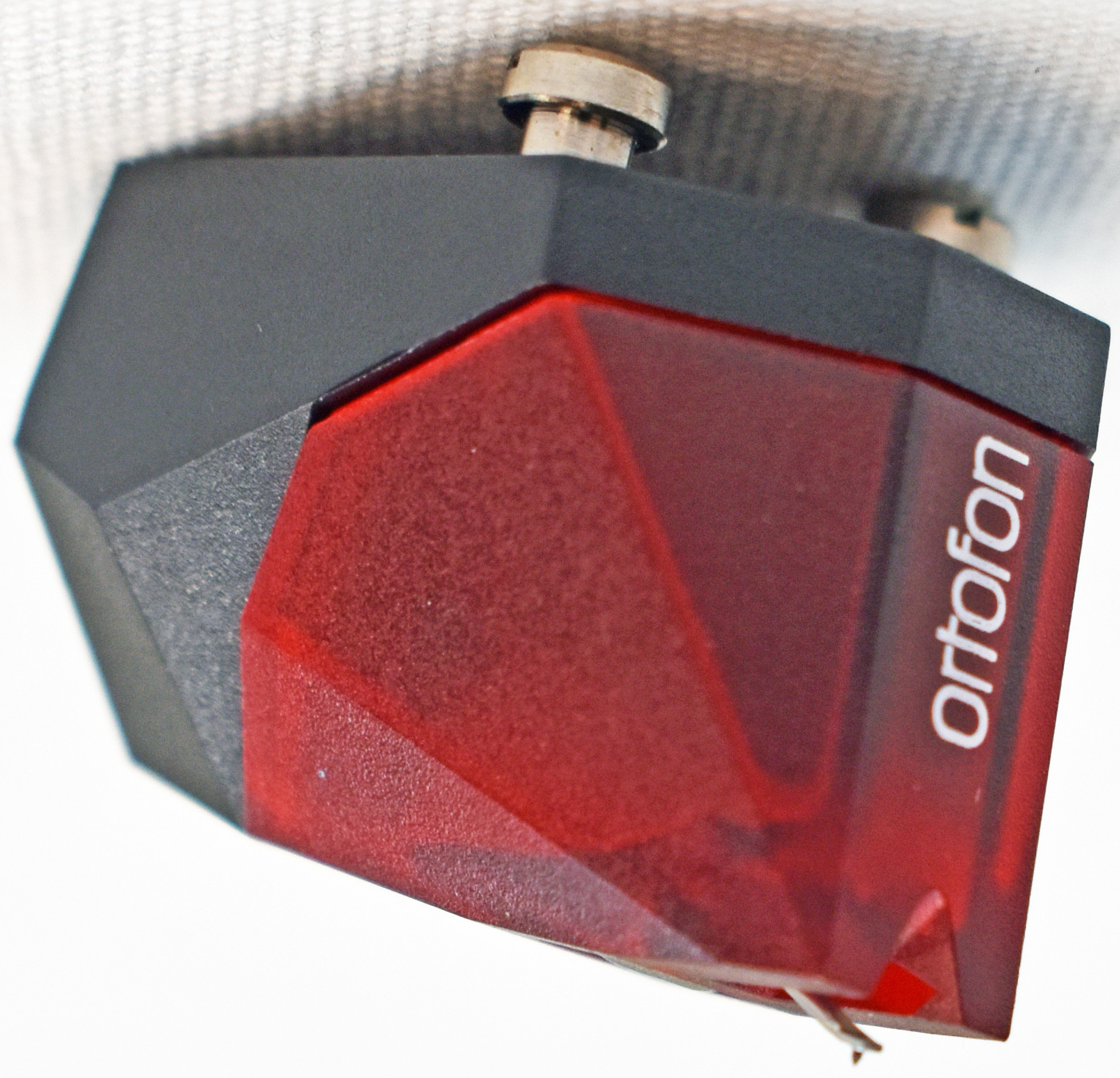

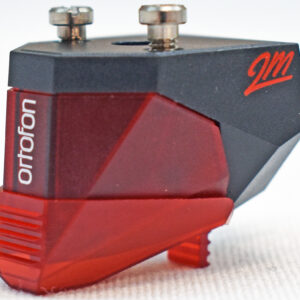

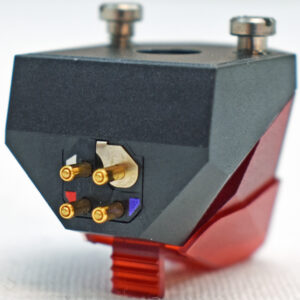

Ortofon 2M Red MM Phono Cartridge with Elliptical-stylus

Description

Ortofon 2M Red MM Phono Cartridge with Elliptical-stylus

BRAND-NEW/NEVER USED CARTRIDGE WITHOUT ORIGINAL BOX – INCLUDES NEEDLE GUARD

Output voltage at
1000 Hz, 5cm/sec.  –  5,5 mV
Channel balance at 1
kHz   –  1,5 dB
Channel separation
at 1 kHz  –  22 dB
Channel separation
at 15 kHz  –  15 dB
Frequency range at –
3dB  –  20-22.000 Hz
Frequency
response  –  20-20.000 Hz + 3 / – 1 dB
Tracking ability at
315Hz at recommended tracking force  –  70 µm
Compliance, dynamic,
lateral  –  20 µm/mN
Stylus type
–  Elliptical
Stylus tip
radius  –  r/R 8/18 µm
Tracking force
range  –  1,6-2,0g (16-20 mN)
Tracking force,
recommended  – 1,8 g (18 mN)
Tracking angle
–  20°
Internal impedance,
DC resistance  –  1,3 kOhm
Internal
inductance  –  700 mH
Recommended load
resistance  –  47 kOhm
Recommended load
capacitance  –  150-300 pF
Cartridge colour,
body/stylus  –  Black/Red
Cartridge
weight  –  7,2 g
