Rega Fono Mini A2D MK2 MM Moving Magnet Phono Preamplifier

Description

The latest version of the multi-award winning Fono Mini A2D
is now available.

This a the same multi award winning product in a new updated
restyled case to bring it in line with the rest of the Rega range.

The Rega Fono Mini A2D is a high-quality phono pre-amplifier
for use with any moving magnet cartridge. The addition of USB interface allows
you to easily transfer vinyl to your PC. The Fono Mini A2D is designed to
amplify the signal from a moving magnet cartridge to a suitable level for all line

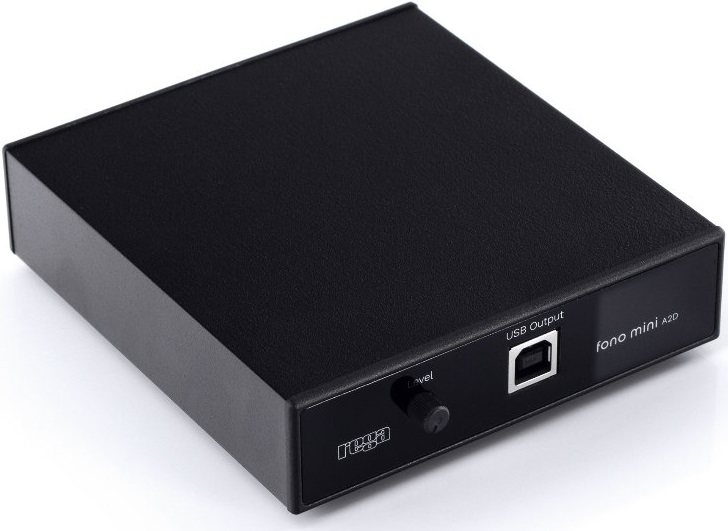

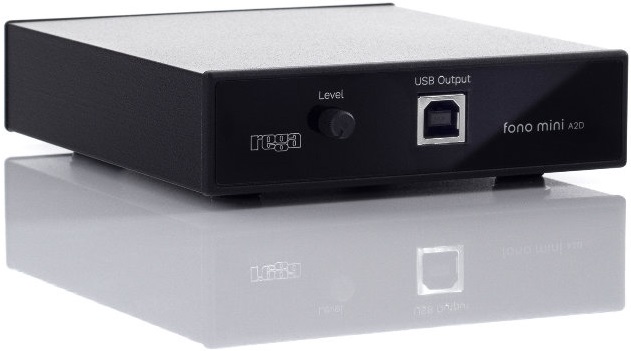

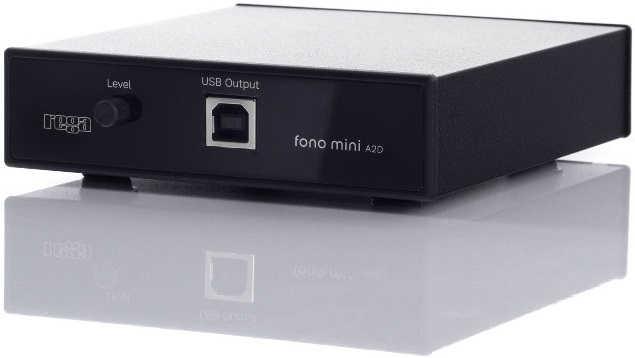

level inputs of an audio amplifier. The new Fono Mini A2D benefits from an

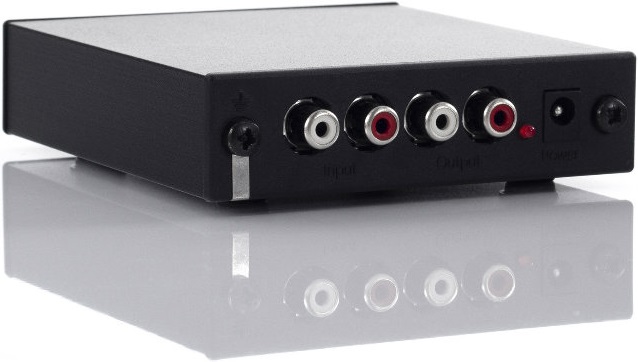

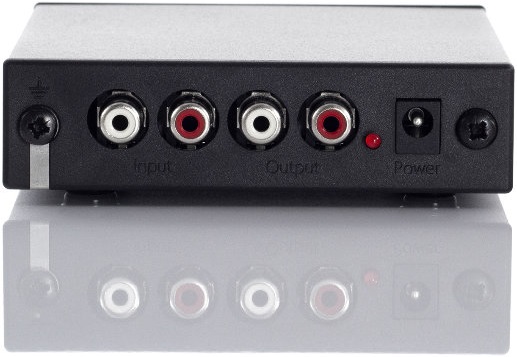

extruded aluminum case and very user-friendly front and back panels that make
this phono pre-amplifier a very easy product to use.

The Fono Mini A2D amplifier offers exceptional performance
and incredible value for money and promises to be a valuable addition to any
hi-fi set up.

To transfer vinyl to your PC, you will need to install a
digital audio editor. Such software is widely available as a free download
(such as Audacity), from the internet. This is a simple interface which allows
monitoring of volume and balance whilst transferring your audio to your PC hard
drive.

Audio editing software includes a level meter which
indicates the output level achieved when playing a piece of vinyl. You

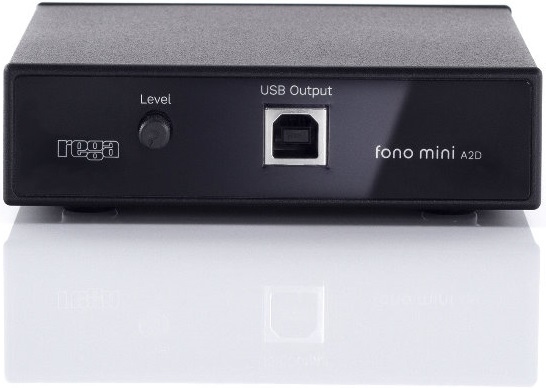

should adjust the output as necessary via the ‘Level’ control located on the
front panel. Always take special note of record levels to ensure optimum
recording quality.

This is a cost-effective version of the Fono MM and
based on the phono amplifier as used in the Brio amplifier.

Simply switch on, sit back and enjoy!

• Input
  sensitivity: 5mV for 500mV output

• Input
  loading: 47k +100pF

• Maximum
  input level: 70mV @ 1kHz

• Output
  Impedance: 100 Ohms

• Signal
  to noise ratio: 78dBA ref 5mV

• Power
  requirements: 24VAC 85mA

• Input
  for full scale digital output: 7.5mV

• Dimensions W 102mm x D 125mm x H 30mm
