Description

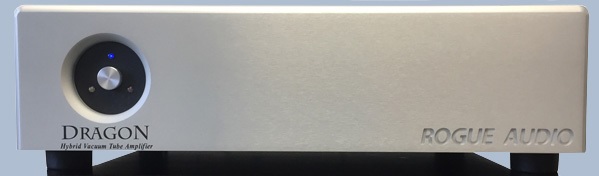

Rogue Audio is pleased to announce the immediate
availability of our new DragoN power amplifier. The DragoN has been designed
around the Hypex NCore NC500 amplifier module (hence the capital N in DragoN)
and replaces the formidable Medusa. The unique circuit design is based on our
proprietary TubeD technology which integrates the tube input stage into the
Hypex output stage to provide outstanding tube sound yet with a remarkable
300Watts of power. And with its cool operation and no regular tube maintenance,
the DragoN is an exceptionally versatile amplifier that can be used in
virtually any high end application. Microprocessor controlled, the DragoN
features smart turn-on sequencing as well as sophisticated protection circuitry
to detect overcurrent, a short circuit, and DC at the output.
SPECIFICATIONS
output power |
300 WPC 8 ohm 500WPC 4 ohm |
frequency response |
5Hz – 30 kHz ± 1dB |
THD |
< 0.1% typ, < 1% at rated power |
input sensitivity |
1.0 V RMS |
dimensions |
18” W x 15” D x 5.5” H |
weight |
36 pounds (25 Kg) |
shipping weight |
42 lbs (27 Kg) |
power requirements |
115/230V – 50/60Hz |
