Sale!

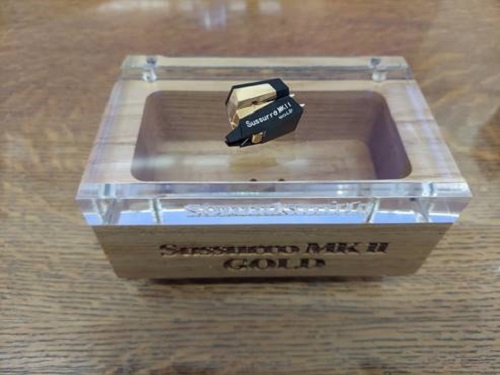

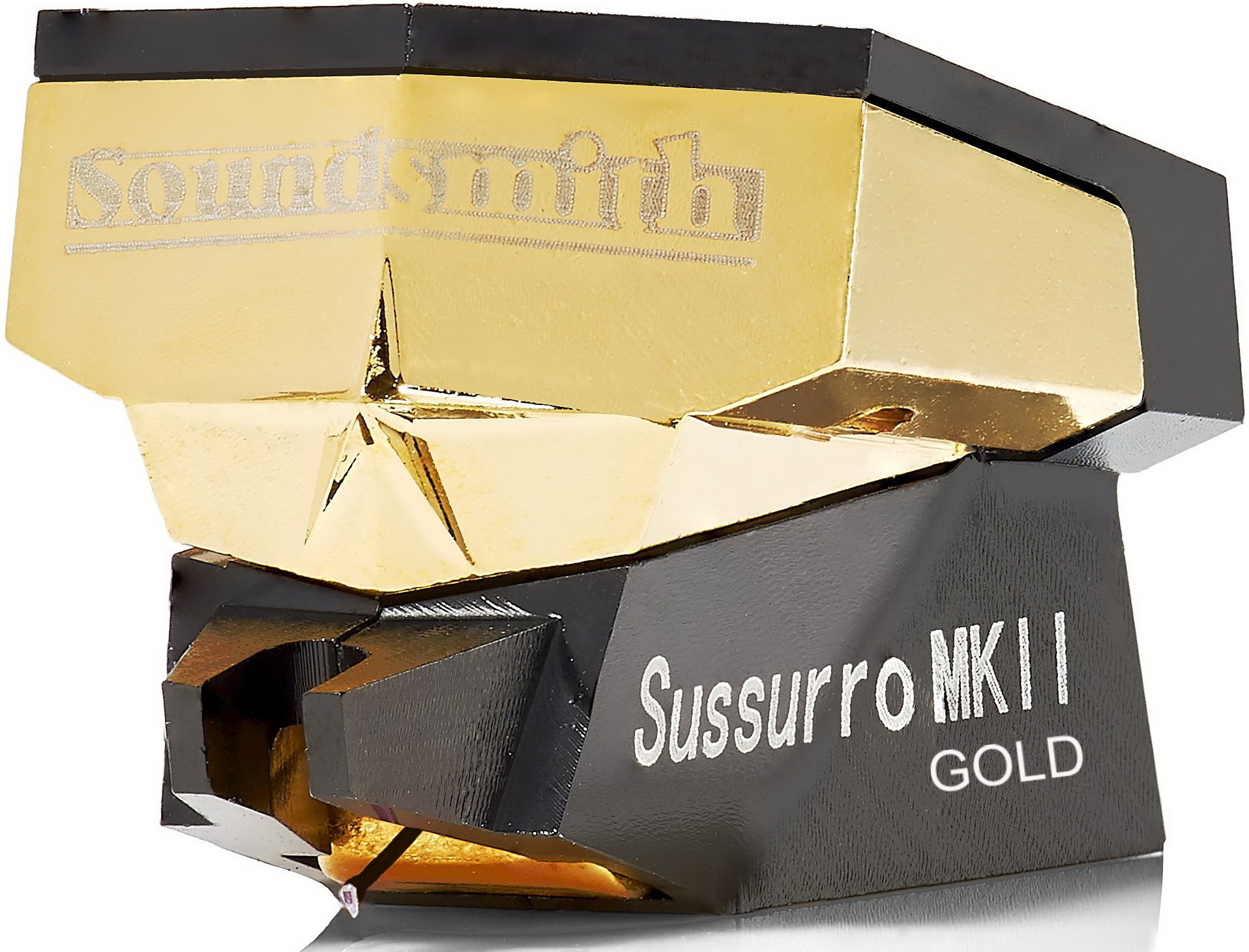

Soundsmith Sussurro MKII ES Gold Limited-Edition Hand-Made Cartridge

Original price was: $6,500.00.Current price is: $5,200.00.

5200
Free Lifetime Technical Assistance
SKU: Sussurro MKII ES Gold
Brand: Soundsmith

Description

Sussurro Gold Limited Edition

Made in  the USA. Rebuild Price? $750
– Less than 20% of MSRP ! ~
 The Sussurro mk II features
2 year warranty to the original owner.

The Sussurro Gold ~ critical design decisions, realized.
Lowest internal mass. Best damping. Esoteric stylus and cantilever. If you
need to stay in constant contact, your cartridge has arrived.

Inspired by Frank Schröder, designed and individually hand
made by Peter Ledermann, Soundsmith’s Sussurro Gold is a cartridge
designed to specifically address the most intricate and critical issues of
cartridge design. The new MKII Sussurro Gold has a newly designed moving
iron element to reduce moving mass by 70%; extremely low stored energy, the new
MKII damping system and an innovative energy distribution path to effectively
transfer mechanical energy away from the cantilever through the cartridge body
into the tone arm. So what does all this mean??

Low jitter. Jitter? You probably thought that was a term
reserved for digital systems. Not so. Stylus jitter is responsible for loss of
detail, and making a cartridge sound, well, like a cartridge. The Sussurro
stays in constant contact with the record groove. If you are not in constant
contact, you can’t hear what has truly been recorded.

Specifications

Output

Low

Output Voltage

0,4 mV

Additional Specifications

Type:

• Fixed
Coil / Moving Iron

Mount:


Standard ½”

Stylus:


Contact Line Nude 0.100mm SQ

Radius
of Curvature:


Microridge SELECTED

Cantilever:

• Boron

Recommended
Tracking Force:

• 1.8 –
2.2 g

Effective
Tip Mass:

• 0.30
mg

Compliance:

• 10
µm/mN (Low)

Frequency
Response:

• 20 –
20,000 Hz ± 1.0 dB

Channel
Separation @ 1000 Hz:

• >
36 dB

• N/A (Mono version)

Channel
Separation @ 50 – 15,000 Hz:

• >
25 dB

• N/A (Mono version)

Channel
Difference:

• <
0.5 dB

• < 1.0 dB (Mono version)

Output
Voltage @ 5cm/sec:

• >
0.40 mV (LOW)

DC
Resistance (DCR):

• 10Ω

Coil
Inductance per channel:

• 2.75
mH

Suggested
Preamp Gain:

• 58 –
64 dB

Cartridge
Weight:

• 12.2
g

Recommended
Load Resistance:

• ≥
470Ω

Recommended
Load Capacitance:

• n/a

Additional information

Weight 0.00000000 lbs
