Tannoy CVS 8 BK 8″ Coaxial In-Ceiling Speaker


Free Lifetime Technical Assistance
Brand: Tannoy


8″ Coaxial In-Ceiling Loudspeaker for Installation

  • Coaxial
    full range ceiling loudspeaker for installation applications
  • 60
    Watts continuous, 240 Watts peak power
  • 8”
    mineral loaded polypropylene driver with nitrile rubber surround for
    enhanced durability and long-term reliability
  • 0.75″
    ferrofluid cooled soft dome neodymium high frequency driver
  • Wide
    constant directivity dispersion for optimum coverage
  • UL
    1480 certified for fire-protected signalling systems
  • UL
    2043 certified for air-handling spaces
  • UV and
    weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
  • Multiple
    transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
  • Low
    insertion loss 60 W line transformer with easily accessible tapping
  • Semi
    matt black finish fits unobtrusively in any environment
  • Powder
    coated perforated steel mesh grille with dust protection
  • Mounting
    C-ring and ceiling tile rails included
  • Phoenix*
    connector with steel cover and strain relief clamping mechanism for fire
    rated cable
  • 10-Year
    Warranty Program*
  • Designed
    and engineered in the U.K.


The CVS 8 BK is a compact, semi matt black 240-Watt ceiling
loudspeaker engineered to provide superb audio performance in both background
and foreground music sound systems. Ideally suited for a wide variety of
applications, from restaurants and hotels to houses of worship and businesses
of all types, the CVS 8 BK offers the power handling, wide frequency response
and low distortion more typically found in a studio reference monitor than a
ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine
clarity that envelopes the listener – without intruding.

Exceptional Sound and Reliability

The design comprises a 200 mm (8.00″) mid bass driver
with a coaxial 19 mm (0.75″) high frequency section mounted in a vented,
injection moulded, paintable front baffle manufactured from UV/weather
resistant UL94V-0 ABS material. The mineral loaded polypropylene cone material
and nitrile rubber surround enhance durability and long-term reliability. This
compact unit is specifically designed for applications requiring the
combination of excellent sonic quality for music and speech reinforcement and
exceptional reliability.

Comprehensive Installation Package

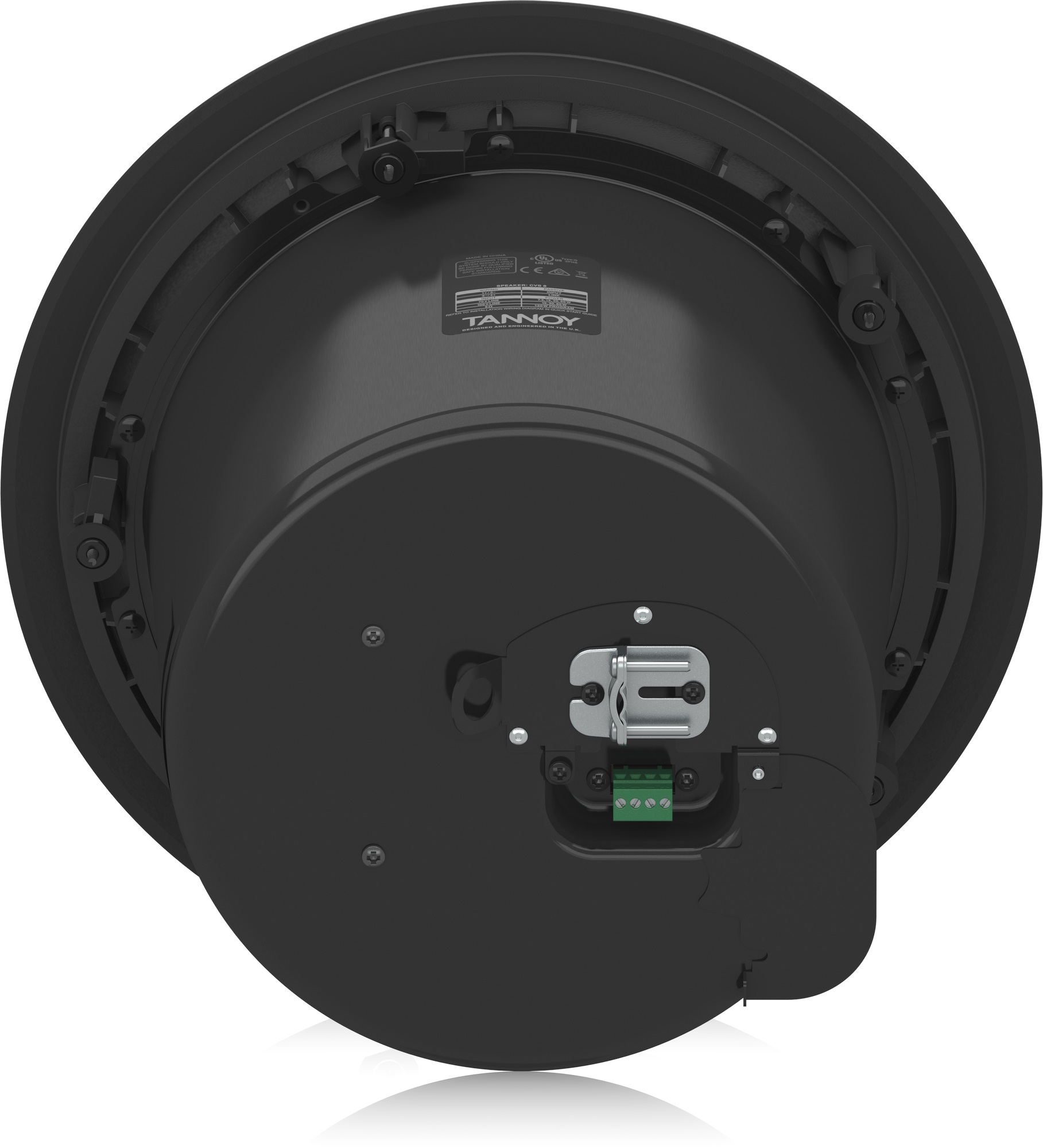

Supplied with an integral zinc-plated steel back
can, with recessed termination box, the CVS 8 BK satisfies the vast majority of
installation application requirements. Connections are made via an industry
standard Phoenix* connector with a low insertion loss

60 W line transformer. A steel cover and strain relief clamping mechanism is
provided for use with fire rated cabling. Security toggle clamps make for quick
and easy installation, while two tile support rails and one C-ring are also
included in the package. A plaster (mud) ring is available as an optional

Additional information

Weight 0.00000000 lbs
