Description
SA-C600

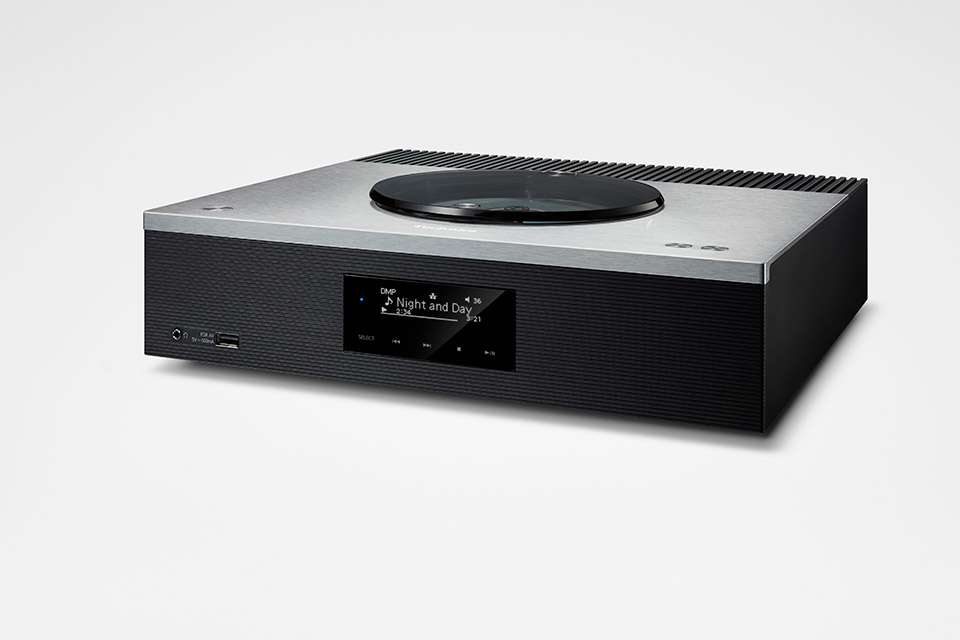

The Network CD Receiver Technics SA-C600 brings you a wealth of music content with a single device—everything from records, CDs, and radio to music streaming and more besides—with a luxurious audio environment courtesy of Technics’ superior sound engineering.
The SA-C600 Network CD Receiver showcases Technics’ legacy of renowned digital audio technology and flawless construction, eliminating noise and rendering a colorful, vibrant expression of sound space. This versatile receiver unit has a twin power supply circuit system for incredibly clear performance, Spacetune™ technology to automatically optimize the sound field, and incredible connectivity across wireless, digital, and analog channels.
- Advanced noise reduction, flawless construction, and versatile connectivity
- Twin power supply circuit system for optimal performance
- Superb sound image localization and transparent spatial expression
- Spacetune™ Auto optimally balances sound, auto-adjusting the sound field for utmost resolution
- Streaming Services like Spotify, Tidal, Deezer, Qobuz, and Amazon, and Inputs including CD, radio, analog, optical digital, coaxial digital, USB and MQA
Full Digital Amp, JENO Engine (JitterElimination and Noise-shapingOptimization)
The SA-C600 uses a fully digital amplifier incorporating Technics’ renowned digital audio technology. Its digital transmission system processes signals fully digitally in all stages from input to output. Compared to analogue transmission, this system is less susceptible to signal degradation caused by external noise, ensuring more precise signal transmission. Accurate signal processing not only delivers high-resolution digital audio but also maintains the soft texture inherent in analogue recordings.
Twin Power Supply Circuit System
The design of the power supply is extremely critical in audio systems containing CD players, amplifiers, digital circuits and other such components. To eliminate any adverse effects on the amplifier, the SA-C600 is equipped with a dedicated power supply for the amplifier circuits that is independent from all other circuits, supplying power to the two independent transformers. The wiring connections between the two dedicated transformers and the amplifier circuits are also optimized for noise reduction.
Clean Powered Clock Generator
The power supply for the clock circuit of the JENO Engine utilizes the same noise suppression circuit employed in Technics’ flagship turntable model, the SL-1000R, in order to improve noise reduction. It achieves superb sound image localization and transparent spatial expression.
Built-in Phono Equalizer compatible with MM Cartridge
The built-in phono equalizer supports MM cartridges. The phono equalizer uses a dedicated power supply and is equipped with a power supply circuit that is different from the control circuit for improved noise reduction. The equalizer circuit also features a shielded construction to shut out the effects of external noise and allows for signal amplification without any loss of fidelity.
Space Tune™
The SA-C600 is equipped with a Space Tune function that enables the adjustment of sound to suit the environment and location of the unit so that anyone can enjoy superb music reproduction. By using the Technics Audio Centre* app for tablets and smartphones or by selecting one of the four presets on the main unit—Free, Wall, Corner and Shelf—the user can achieve the most suitable sound reproduction for their specific acoustic environment. The L/R Custom feature allows users to enter separate settings for each individual speaker, adjusting for installation under different conditions and bringing out the best sound quality in any environment.
* Available for iOS devices only
SUPPORTS A WIDE VARIETY OF MUSIC CONTENT
Compatible with a variety of music sources
The SA-C600 supports a variety of music sources including CD, radio, phono input, optical digital input (including TVs), coaxial digital input, USB input, and more.
Enjoy high-quality sound wirelessly
The SA-C600 can playback high-resolution music wirelessly. It supports not only Bluetooth® and AirPlay 2, but also Spotify Connect®, TIDAL, Qobuz, Amazon Music, and more, and comes with Chromecast built-in™.
Compatible with MQA®
The SA-C600 supports MQA and can playback MQA-CD and MQA files downloaded from music streaming services with outstanding sound quality.
Designed for Sophisticated MusicListening Experience
To ensure consistency of appearance, the design of the SA-C600 incorporates elements from Technics turntables such as color, texture and dimensions, improving the aesthetics of the system. The aluminum top panel sports a built-in CD player with a manually operated lid for ease of use and functional beauty.
Output Power
60 W + 60 W (1kHz, T.H.D. 1.0 %, 4Ω, 20kHz LPF)
FTC Output Power
20W + 20W (20-20kHz,THD+N:1.0%,8Ω)
Load Impedance
4Ω-16Ω
Frequency Response – PHONO (MM)
20Hz – 20kHz ( RIAA DEVIATION ±1dB, 8Ω )
Frequency Response – LINE
20Hz – 80kHz ( -3dB, 8Ω )
Frequency Response – DIGITAL
20Hz – 90kHz ( -3dB, 8Ω )
Input Sensitivity / Input Impedance – PHONO (MM)
2.5 mV / 47 kΩ
Input Sensitivity / Input Impedance – LINE
200 mV / 22 kΩ
Analogue Input Terminal
LINE x 1 , PHONO (MM) x1
Digital Input Terminal
Optical digital x1, Coaxial digital x1, USB-A x1, USB-B x1 (PC)
Analogue Output Terminal
Sub Woofer x1
Headphone Output
Yes, Stereo Φ3.5 mm
Disc Compatibility
Audio CD, CD-R/CD-RW (CD-DA, Discs recorded and finalized on recording devices)
USB-A (iPod/iPhone/iPad)
No
USB-A (Support Codec – WAV)
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
USB-A (Support Codec – FLAC)
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
USB-A (Support Codec – DSD)
Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
USB-A (Support Codec – AIFF)
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
USB-A (Support Codec – ALAC)
Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
USB-A (Support Codec – AAC)
Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
USB-A (Support Codec – MP3)
Yes (32, 44.1, 48 kHz / 16-320 kbps)
PC(USB-B) USB Audio Class Specification
USB 2.0 high-speed, USB Audio Class 2.0, Asynchronous mode
PC(USB-B) Support Codec
LPCM Yes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit), DSD Yes (2.8 MHz, 5.6 MHz)
PC(USB-B) DSD control mode
ASIO Native mode, DoP mode
MQA Decoder
Yes
LAN(DMR) – WAV
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
LAN(DMR) – FLAC
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
LAN(DMR) – DSD
Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
LAN(DMR) – AIFF
Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
LAN(DMR) – ALAC
Yes(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
LAN(DMR) – AAC
Yes (32, 44.1, 48, 88.2, 96 kHz/16-320kbps)
LAN(DMR) – MP3
Yes (32, 44.1, 48 kHz / 16-320 kbps)
Ethernet Interface
LAN (100 Base-TX/10 Base-T)
Wi-Fi
“IEEE 802.11 a/b/g/n/ac 2.4 GHz / 5 GHz Band”
Chromecast built-in
Yes
AirPlay 2
Yes
Bluetooth® (Support codec)
Yes (AAC, SBC)
Tuner
FM
Power Supply
AC 120 V, 60 Hz
Power Consumption
46W
Dimensions (W x H x D)
13-25/64 x 3-45/64 x 13-7/16 inch
Weight
Approx. 10.6 lbs
Accessories
AC Cord, Remote Control, Batteries for Remote Control, Owner’s Manual
SB-C600E-K
The Technics SB-C600 features a new coaxial driver, thoroughly eliminating unnecessary vibrations in the cabinet, and advances their reputed Balanced Driver Mounting Architecture used in previous models.
Includes two speakers.
A bookshelf speaker system that provides smooth, emotion-rich, high-quality sound, the SB-C600 uses a 2-way coaxial speaker unit realizes clear sound image localization and full-scale sound stage. The balanced driver mounting architecture thoroughly suppresses unnecessary vibrations for clear audio without distortion.
- Enhanced spatial sound with advanced phase precision driver
- High-resolution sound reproduction and a wide sound stage
- Reproduces sound with a high signal-to-noise ratio, removing undesirable or unnecessary sounds
- Woofer diaphragm has a shallow shape and smooth edge to reduce sound reflection
- Balanced driver mounting architecture holds speaker units in place to eliminate vibration and noise
Advanced Phase Precision Driver
To reproduce music with enhanced spatial sound expressivity requires that the wavefronts of sounds radiated from the speaker unit are all aligned regardless of the listening position. The concept of point sound source is one of the ideal approaches to achieve it.
To realize the point sound source reproduction, the coaxial configuration was adopted and then it was combined with the originally shaped Linear Phase Plug for aligning phases and the Smooth Flow Diaphragm formed with a shallow-shape diaphragm and smooth edge shape for minimum sound reflection. The result is a spherical wave with aligned wavefronts of radiated sounds.
The SB-C600’s 2-way coaxial speaker unit realizes clear sound image localization and smooth and emotion-rich, high-quality sound, while inheriting the concepts of point sound source and linear phase that Technics pursues relentlessly.
Linear Phase Plug
The originally shaped acoustic plug is positioned on the front side of the tweeter diaphragm and provides a high-resolution sound reproduction capability and a wide sound stage.
Smooth Flow Diaphragm
If the sound wave has irregularities on its sound transmitting surface, its wavefront becomes disturbed by the shapes of the irregularities, resulting in the degradation of frequency characteristics. High frequencies that have short wavelengths tend to be more susceptible to the degradation of sound characteristics. The woofer diaphragm in the coaxial speaker unit has a shallow shape and smooth edge to reduce sound reflection. The result is minimal disturbance of the wavefronts of sound waves radiated from the diaphragm to realize excellent frequency response and phase characteristics as well as wide directivity.
This configuration achieves a wide sound stage and smooth and rich mid- to high-frequency range.
Smooth Flow Port
A bass reflex port with an ordinary shape produces a large air current vortex that induces annoying high-frequency noise. Technics employed the airflow control method utilized for airplane wings and designed the cross-sectional shape of the port using flow analysis. The optimally designed port shape does not cause airflow disturbance at the opening and ensures high-quality bass reproduction with minimum noise and superb response.
Stationary Construction
It thoroughly removes undesirable or unnecessary sounds and reproduces only the necessary sounds with a high signal-to-noise ratio. The “Balanced Driver Mount Architecture” used in the grand class SB-G90M2 has been optimized for this model by making full use of CAE. In addition, the speaker mount baffle that holds the speaker units in place has been newly designed to strengthen the rigidity of the entire cabinet. The combination of these factors maximizes the advantages of the gravity center mount structure. The rigidity and shape of each part that makes up the coaxial speaker unit has been carefully studied to eliminate unnecessary vibration and noise.
Balanced Driver Mounting Architecture
To realize a calm and low-distortion sound, the SB-C600 employs a speaker mount baffle created by optimizing the low-resonance, high-rigidity design concept of the SB-G90M2 using CAE.
The originally shaped speaker mount baffle keeps the concentration of stress in check. The speaker mount baffle secures enough vent holes to ensure smooth flow of sounds radiated from the back sides of the speaker units and improve the response while maintaining low resonance and high rigidity. In addition, this structure reduces the vibrations of the entire enclosure and minimizes the effects on other equipment.
Type
2-way 2-speaker Bass Reflex (Coaxial 2-way Woofer/built-in tweeters)
Speaker Units (Woofer / Tweeter)
15 cm (6″) Cone type x 1 / 2.5 cm (1″) Dome type x 1
Impedance
4Ω
Input Power (IEC)
60W (Rated), 120 W (Max)
Recommended Amp Power
40- 120 W (Speaker tested by IEC60268-5 Short Term Max Test)
Sound Pressure Level
83 dB / 2.83 V (m), 80 dB / W(m)
Frequency Range
40Hz – 100kHz (-10dB)
Crossover Frequencies
2kHz
Dimensions (W x H x D)
7 x 11-1/2 x 10-1/6 inch (Include net and terminal)
Weight
Approx. 14 lbs
Accessories
Speaker Cable x2*¹, Owner’s Manual x1 *1 Length of the speaker cable may not be sufficient on your placement. Please prepare suitable cable based on your installation requirements.
