Yamaha ZG01 Gaming Mixer for Voice Chat and Game Streaming

Description

ZG01 Gaming Mixer

Ideal for gamers who use voice chat and for game streamers,
this innovative audio mixer with USB interface gives you full command of your
game sound, chat and voice levels — plus mic/vocal effects, immersive 3D
surround sound and competitive-gaming focus modes — all with the premium audio
performance you expect from Yamaha.

• Easy
  to use, yet powerful enough for eSports pros and Twitch broadcasters

• Intuitive
  controls let you quickly manage sound levels and effects in real-time

• Advanced
  mic settings and voice effects (compression, limiter, reverb, pitch, radio
  voice and more) to fine-tune and personalize your voice, plus echo and
  censor beep buttons

• Supports
  gaming headsets with a built-in mic or a dedicated mic via the rear-panel
  XLR / TRS combo jack; 48V phantom power for condenser mics

• 3D
  surround sound and unique gaming focus modes immerse you in the action and
  give you an edge up on your competitors

• Works
  with Windows/Mac computers via versatile USB-C interface; driver allows
  audio to be assigned to two different apps — perfect for use with Discord
  and OBS/Streamlabs

• Option
  to use voice chat from your phone via a smartphone aux jack (mini TRRS)

• Access
  audio from gaming consoles via a built-in 2-in/1-out HDMI switcher (up to
  4K/60 video pass-through; does not capture video)

• ZG
  Controller app for Windows/Mac lets you go deep with settings and
  customizations that can be saved and quickly recalled from preset buttons
  on the mixer



COMPACT DESIGN, EASY CONTROLS

Set aside the big mixer with dozens of knobs – now there’s a
smaller and easier way to manage your gaming audio experience. The compact
footprint of the ZG01 fits neatly into your command center, offering just the
right selection of tactile controls you need for real-time mixing and effects –
with deeper, less frequently accessed settings available in the ZG software.

VOICE EFFECTS & GAME SOUND MODES

KILLER EFFECTS, AT YOUR FINGERTIPS

Customize your mic/voice and game sound settings in the ZG
software, then recall them instantly from the ZG01 mixer preset buttons.

Mic/voice settings include compression, limiter, reverb,
pitch, radio voice and more – plus press-and-hold buttons for echo and censor
beep sounds. Game sound options include 3D Surround Sound, Focus Modes and 3D
Chat Space.

STUNNING SONIC REALISM

Engage 3D Surround Sound to immerse yourself in an
ultra-realistic soundscape using any normal stereo gaming headset. The ZG01
mixer accepts multi-channel surround sound audio from the USB/HDMI input and
virtualizes it using Yamaha proprietary ViReal™ technology.

HEAR THEM COMING

Focus Modes allow you to customize your soundscape to suit a
variety of game titles, scenes and playing styles, such as suppressing the
sound of your own character’s voice or emphasizing the game’s environmental
sounds. Hear your opponent’s footsteps… before it’s too late.

CLEAR UP THE CHAT CHAOS

With 3D Game Chat Space, your buddies’ voices get placed
where you want them in a virtual space that avoids overlap with the game sound.
You’ll feel as if you’re in the same room with them – there might still be a
lot of trash talk, but at least you’ll hear it clearly.

SHARE IT ALL

Down to stream? Your multi-channel game audio is converted
and processed by the ZG01 to reproduce a surround sound experience that can be
streamed to your entire audience. Even if your fans only have normal stereo
headphones, they can still experience the immersive sonic realism.

INSANELY COOL MULTI-CHANNEL USB

The ZG01 connects to your PC with a special USB interface
that offers phenomenal versatility. Just install the free USB driver from our
website and the mixer will be recognized as two virtual devices that can send
and receive two audio channels for different purposes. Like Discord and
OBS/Streamlabs at the same time? Yep.

Input to PC:

– Streaming: This channel is for sending the game and voice
chat audio input from the ZG01 to your computer. Assign this channel to the
audio input of the streaming application on your computer.

– Voice: This channel is for sending your voice input from
your mic or headset to your computer. Assign this channel to the audio input of
the voice chat application running on your computer.

Output from PC:

– Speakers: This channel is for sending audio from your
computer to the ZG. If you are playing PC games, assign this channel as the
audio output. The game knob on the ZG01 can be used as a game volume
controller.

– Voice: This is the channel for voice chat. If you are
using a voice chat application running on your computer, assign this channel to
the audio output of it. The voice chat knob on the ZG01 can be used as a voice
chat volume controller.

MORE WAYS TO PLAY

While the ZG01 is especially well-suited for interfacing
with a PC via USB, it also has some great extras in the connectivity
department.

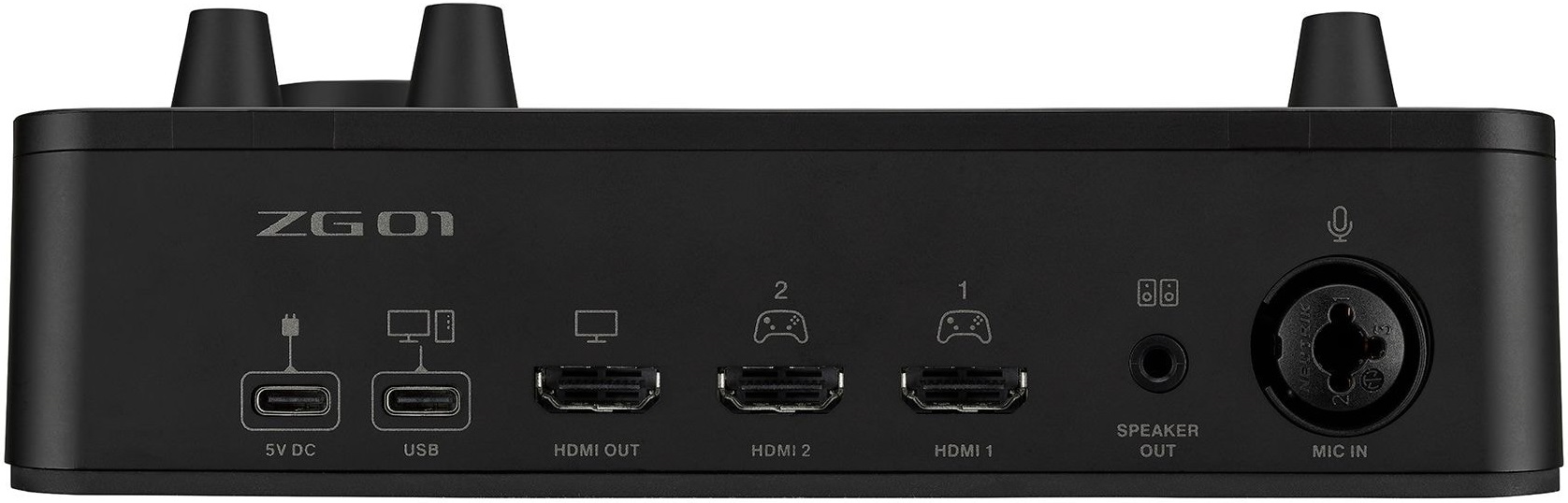

On the back panel: a built-in 2-in/1-out HDMI switcher lets
you tap audio* from a gaming console (or two), a combo XLR/TRS jack lets you
connect a dedicated mic, and a stereo mini analog out lets you hook up your
favorite powered speakers or sound bar.

On the front panel: a smartphone aux jack (mini TRRS) lets
you run voice chat from your phone rather than your PC if desired.

*HDMI audio out is 2-ch 24-bit/48 kHz fixed (HDMI video
is pass-through only up to 4K/60; the ZG01 does not have a video capture function)

POWERFUL & EASY-TO-USE SOFTWARE

This is where the magic happens. A free download from our
site, the ZG Controller software (Windows/Mac) is the ultimate companion for
the ZG01, providing access to all the deep setting and customization features
that truly bring the mixer to life.

Easy to learn, yet rich with powerful capabilities, the ZG
Controller software lets you create your own ultimate game audio experience.



Outline
Input Channels	Microphone	1 – Combo (Mic, +48 V phantom power), 3.5 mm (1/8″) mini (Headset mic, Plug-in power) *Mic and Headset mic cannot be used simultaneously
	Smartphone	1 – 4-pole mini input/output (TRRS)
	HDMI	1 – Switchable input HDMI 1 or HDMI 2 by button; Audio input: 2ch 24-bit/192kHz (Max.), Video signal *1: No video capture function
	USB	2 – Virtual devices (Voice, Streaming)
Output Channels	PHONES	1 – 3.5 mm (1/8″) stereo mini (Headphones or Headset phones)
	Smartphone	1 – 4-pole mini input/output (TRRS)
	MONITOR OUT	1 – Stereo mini (Speaker out)
	HDMI	1 – Audio out: 2ch 24-bit/48kHz fixed, Video signal *1: Pass-through
	USB	2 – Virtual devices (Voice, Speaker)
Functions	MUTE button x 1, HDMI input select button x 1, Monitor output select button x 1, Effect preset button x 6 (Voice x 3, Game x3)
On-board processors	DSP	ZG SURROUND, FOCUS MODE/EQ, 3D VOICE CHAT, Voice change/Game sound effects. Detailed settings made via the ZG Controller software.
USB	USB Audio	Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
	USB DC Power input	1 – Type-C, 5 V DC, 1.5 A
General specifications
Power requirements	5 V DC, 1.5 A
Power consumption	Max. 7.5 W
Dimensions	W	195 mm (7.7″)
	H	47.5 mm (1.9″)
	D	110 mm (4.3″)
Net weight	1.8 lbs
Included Accessories	USB 2.0 cable (USB-C to USB-C) 1.5 m x 1, USB 2.0 cable (USB-A to USB-C) 1.5 m x 1, Start Guide, Safety Guide
Others	Operating Temperature: 0 to + 40 ℃ (32 to 104° F)

*1 – Video formats: VGA, 480i (60 Hz), 576i (50
Hz), 480p (60 Hz), 576p (50 Hz), 720p (60 Hz, 50 Hz), 1080i (60 Hz, 50Hz),
1080p (60 Hz, 50 Hz, 30Hz, 25 Hz, 24 Hz), 4K (60 Hz, 50 Hz, 30 Hz, 25 Hz, 24
Hz)
