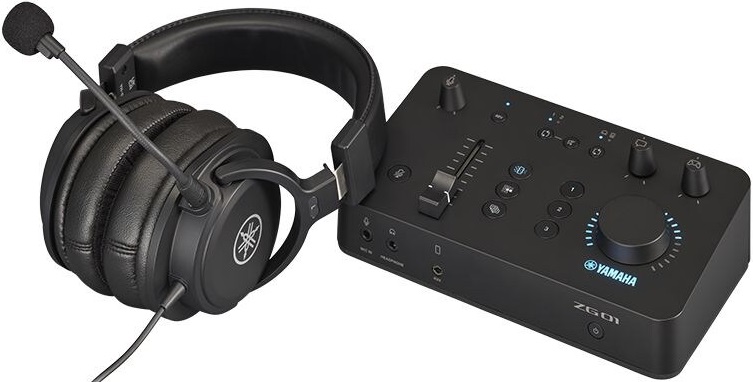

Yamaha ZG01 Gaming Mixer & YH-G01 Headset Pack

Outline

Input
Channels

Microphone

1 – Combo (Mic, +48 V phantom power), 3.5 mm (1/8″)
mini (Headset mic, Plug-in power) *Mic and Headset mic cannot be used
simultaneously

Smartphone

1 – 4-pole mini input/output (TRRS)

HDMI

1 – Switchable input HDMI 1 or HDMI 2 by button; Audio
input: 2ch 24-bit/192kHz (Max.), Video signal *1: No video capture function

USB

2 – Virtual devices (Voice, Streaming)

Output
Channels

PHONES

1 – 3.5 mm (1/8″) stereo mini (Headphones or Headset
phones)

Smartphone

1 – 4-pole mini input/output (TRRS)

MONITOR
OUT

1 – Stereo mini (Speaker out)

HDMI

1 – Audio out: 2ch 24-bit/48kHz fixed, Video signal *1:
Pass-through

USB

2 – Virtual devices (Voice, Speaker)

Functions

MUTE
button x 1, HDMI input select button x 1, Monitor output select button x 1,
Effect preset button x 6 (Voice x 3, Game x3)

On-board
processors

DSP

ZG SURROUND, FOCUS MODE/EQ, 3D VOICE CHAT, Voice
change/Game sound effects. Detailed settings made via the ZG Controller
software.

USB

USB
Audio

Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C

USB
DC Power input

1 – Type-C, 5 V DC, 1.5 A

General
specifications

Power
requirements

5 V DC,
1.5 A

Power
consumption

Max.
7.5 W

Dimensions

W

195 mm (7.7″)

H

47.5 mm (1.9″)

D

110 mm (4.3″)

Net
weight

1.8 lbs

Included
Accessories

USB 2.0
cable (USB-C to USB-C) 1.5 m x 1, USB 2.0 cable (USB-A to USB-C) 1.5 m x 1,
Start Guide, Safety Guide

Others

Operating
Temperature: 0 to + 40 ℃ (32 to 104° F)

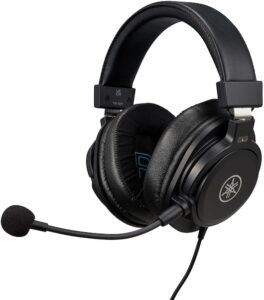

General
specifications

Frequency
Response

20 Hz –
20 kHz

Impedance

35 Ω

Sensitivity
(SPL)

94.4
dB/mW

Microphone

Electret
condenser microphone

Connector

1/8″,
4-pole stereo mini (TRRS)

Cable

2 m
(6.6 ft.)

Weight

Approx.
240 g (0.5 lbs) (without cable & plug)

Included
Accessories

Microphone
x 1, Headset audio splitter cable x 1, Owner’s manual
